Shenzhen DJS Co., Ltd. >> Micro ATX H61-1155 Desktop Motherboard with 2*DDR3/4*SATA//4*USB

Micro ATX H61-1155 Desktop Motherboard with 2DDR3/4SATA//4*USB

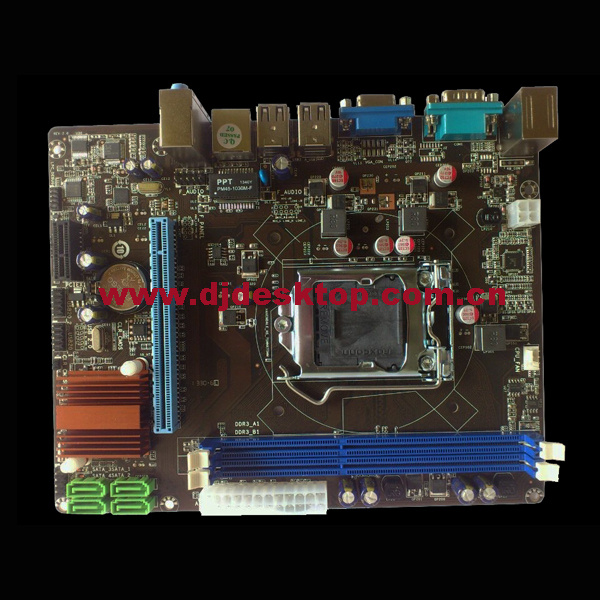

Name: Micro ATX H61-1155 Desktop Motherboard with 2*DDR3/4*SATA//4*USB
Brand: china-manufacturer-directory.com
SKU: 703500665
Availability: InStock
Rating: 4.9 (23 reviews)

Supplier:	Shenzhen DJS Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,EXW,others

Product Specifications

Prod Model:	H61-1155
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chipset:	Intel H61+Ich8
CPU:	I3/I5/I7
Size:	220mm X 165mm
Main Chipset:	Intel
Structure:	Micro ATX
Memory:	DDR3
CPU Socket:	LGA 1155

Product Description

We are professional manufactuer. Micro ATX H61-1155 Desktop Computer Motherboard Support DDR3 specification is as following:

CPU

LGA1155, supports Intel Core i7 / Intel Core i5 / Intel Core i3 / Intel Pentium / Intel Celeron CPU

for other Intel Core CPUs with External video card

Chipset

Northbridge: Intel H61 Express Chipset

Southbridge: Intel+ICH8

Memory

2x1.5V DDR3 DIMM, maximum capacity to 8G

Dual channel 1333/1066/800 MHz

Graphics

1*VGA port

Audio

Realtek ALC662, supports High Definition
supports Audio 2/4/5.1 sound channel

LAN

Realtek RTL81XX(10/100/1000 Mbit)

Expansion Slot

1*PCI Express x16(supports PCI Express 3.0 with the Intel 22nm series CPU

1*PCI Express x1(supports PCI Express 2.0)

Internal slots

4*SATA, 3Gb/s

1*CPU fan

1*system fan

1*control board slot

1*sound source slot

2*USB2.0/1.1(for 4 USB slots)

1*COM(RS232)

Back slots

1*PS/2 keyboard slot

1*PS/2 mouse slot

1*VGA

4*USB 2.0/1.1 ports

Accessories

CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE.

SIZE

220mm x 165mm

PACKING

20PCS IN ONE CARTON
