Product Specifications
Prod Model: |
GCYFTY |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Air Blown Micro Duct: |
Fiber Optic Cable |
Application: |
Medicine |
Type: |
Multi-mode Fiber |
Connection Structure: |
FC |
Certification: |
ISO9001 |
Sheath Material: |
PE,PU,PVC,Lszh |
Product Description

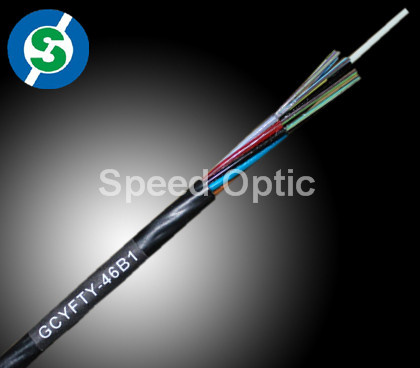

Micro blown optical fiber cable
Air Blown Micro duct Cable Application
Type: GCYFTY
Cores: 2~144 Cores
Fibers: G652D, G655, G657, A1a(50/125),A1b(62.5/125),OM3
Description:
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is protected from water ingress by water-blocking yarn, the cable is completed with a PE sheath.
Characteristics:
1. Non-metal design can prevent the cable from radio interference and magnetic wave interference.
2. Specially designed compact structure is good at preventing loose tubes from shrinking.
3. Loose tube filling compound ensure good moisture resistance performance.
4. Good flexibility
5. High dense fiber packed, small diameter and light weight, it's better option for blowing installation process.
Fiber Color Code:
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable structure and parameter:
Items | Parameter |
Fiber count | 12~36 | 38~72 | 84 | 96 |
Loose tube | PBT filled with Jelly, Approx. diameter 1.2~1.6mm |
Max cores of tube | 6 | 8 / 12 | 12 | 12 |
Assembling | Non-metallic central strength member (FRP)+ colored tubes /fillers(SZ) stranded |
Filling | Filling compound jelly or Dry core |
Cable jacket | HDPE (LSZH available) |
Cable Approx. diameter | 5.6mm | 6.2 mm | 6.4mm | 6.8mm |
Cable weight approx. | 26 kg/km | 30 kg /km | 35 kg /km | 40 kg /km |
Pulling tension | 0.5*Weight of per kilo cable |
Crush Resistance | 150~450 N/10cm |
Blown distance | ≥1km |
Attenuation Coefficient | ≤0.36@1310nm; ≤0.25@1550nm (G.652 fiber) |
Min bend radius | Static 10D Dynamic 20D (D: Cable diameter mm) |
Operating Temperature | -40~+60ºC |
