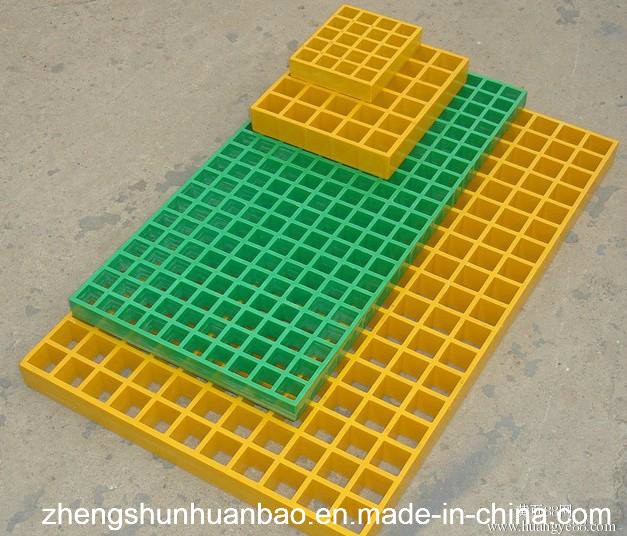

Micro Mesh FRP Vinyl Ester Resin Molded Grating

Name: Micro Mesh FRP Vinyl Ester Resin Molded Grating
Brand: china-manufacturer-directory.com
SKU: 759655685
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Specification

Item no.	Height(mm)	Mesh Size (mm)	Standard Panel Sizes(mm)	Bar Thickness (top/bottom-mm)	Open Area	Weight (kg/m2)
1	13	50.8×50.8	3660×1220	6.4 / 5.4	76%	5.5
2	15	25.4×25.4 / 50.8×50.8	3660×1220	6.2 / 5	57%	7.2
3	15	38.1×38.1	3660×1225	6.3 / 5.2	69	6.5
4	15	20×20 / 40×40	4047×1247	6.35 / 5.3	47	11.5
5	20	38.1×38.1	3665×1225	6.3 / 5	69	9.3
6	20	12.8×12.8×12.8 / 38.5×38.5	3434×970	7.2 / 6.4	27	18.5
7	25	38.1×38.1	3665×1225	6.35 / 5	69	12.3
8	25	40×40	4047×1007	6.35 / 5	70	12.2
9	25	19×19 / 38×38	4005×1220	6.4 / 5	44	15.5
10	25	25×100(Bearing bars to run width direction)	3007×1009	9.4 / 8(length) 6.4 / 5(width)	67	13.8
11	25	25.4×101.6(Bearing bars to run width direction)	3660×1220	7 / 5	67	13
12	25	101.6×25.4(Bearing bars to run length direction)	3665×1225	7 / 5	67	13.1
13	30	38.1×38.1	4008×1525	6.6 / 5	68	14.6
14	30	40×40	4047×1007	6.6 / 5	69	14.2
15	30	20×20 / 40×40	4047×1247	7 / 5	42	18.1
16	30	12.7×12.7×12.7 / 38×38	4040×1220	7 / 5	30	23.5
17	30	26×26 / 52×52	4011×1150	6.5/5	56	13.6
18	38	38.1×38.1	3969×1525	7 / 5	66	19.2
19	38	40×40	4047×1007	7 / 5	67	18.8
20	38	152.4×25.4(Bearing bars to run length direction)	3665×1226	7 / 5(length) 9 / 7(width)	68	20.4
21	38	101.6×38.1(Bearing bars to run length direction)	3660×1220	7 / 5	76	14.5
22	38	19×19 / 38.1×38.1	4045×1220	7 / 5	40	23.5
23	38	20×20 / 40×40	4047×1247	7 / 5	42	22
24	40	40×40	4047×1247	7 / 5	67	20
25	40	220×60	2207×1507	7 / 5	85	9.5
26	40	20×20 / 40×40	4047×1207	7 / 5	42	23.7
27	50	50.7×50.7	3660×1225	8.3 / 5	69	21.5
28	50	50.7×50.7	3660×1225	8.8 / 5	68%	23.5
29	50	25.35×25.35 / 50.7×50.7	3660×1220	8 / 6	47%	26
30	50	152.4×38.1(Bearing bars to run length direction)	3660×1220	9 / 7	72%	20.8
31	50	38.1×38.1	3665×1225	11.5 / 9	48	40.5
32	63	38.1×38.1	3660×1220	9 / 5.8	58%	38.5
33	63	38.1×38.1	3670×1230	12 / 9	46%	52

Construction
GRP Gratings are produced by wet moulding and hot curing in a heated mould. The reinforcement consists of continuous fibreglass rovings in alternating layers. So the loads are distributed evenly in all directions.
Design
Regularly Moulded GRP Gratings have a polyester resin matrix. Glass content is approximately 35%. Standard colours are green, yellow or grey, other colours are available according to RAL.

Prod Model:	ZS-575
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Trench, Cover, Walkway etc
Color:	Yellow, Green, Grey, Red, Blue, and Black
Height:	25.4,30.0,38.1,50.8mm
Dimensions:	3838, 4040, 50*50 etc
Standard Size:	L:1220mm W:3660mm

Hengshui is a big base of FRP products in Hebei, China. We-Zhengshun are one leader manufacturer and exporter of FRP products, we are also in charge of installation engineering and maintenance service. With so many years technological know-how, we are in capacity of manufacturing according to special design request, aiming to supply high-quality products and good performance.

Our main products are FRP pipeline, cooling tower, gas scrubber, fan series, air-conditioning equipments, molding grating, water tank, anticorrosion project HVAC systerm. At the moment, we have FW-4000 computer-control enlace machine, extrusion machine, bending machine, rolling machine, cutter, patterns of cool tower, air-blower, chairs, pultruded, spraying, RTM equipment, etc. All kinds of quality control equipments are superior in all over the world.

Our factory has obtained ISO9001: 2000 Quality System Certificate, British Royal UKAS certificate, ISO14001 certificate, ISO1800 certificate, National Grade II Installation Certificate of Anti-corrosion, Mechanical and Electronic.

At the moment, Zhengshun products have been supplied to overseas especially Europe and Southeast Asia. On the request of domestic and international market, we constantly challenge with new technological development and provide high quality and reliable products and services.
