Micro Panel Thermal Receipt Printer with RS-232--Hcc-E3
Product Specifications
| Prod Model: |
HCC-E3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
8 Dots/mm, 384 Dots/Line |
| Power Supply (Adapter): |
DC9~24V±10%, 2A |
| Color: |
Black |
| Outline Dimension (Wxdxh): |
109X101X68mm |
| Life: |
1,000,000 Cuts |
| Usage: |
Card Printer |
| Type: |
Laser |
| Interface Type: |
USB |
| Style: |
Black and White |
Product Description

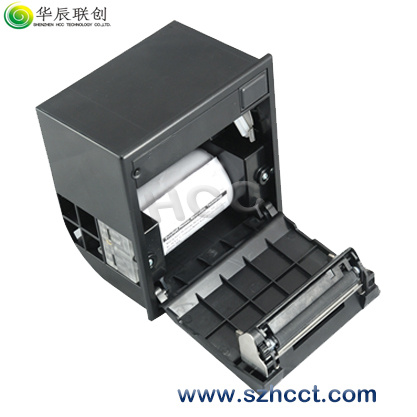

Micro Panel Thermal Receipt Printer With RS-232--HCC-E3
Feature
Technical specifications:
| Model | Micro Panel Receipt Printer HCC-E3 |
| Print | Printing Method: | Thermal Line |
| Printing Speed: | 100mm/s |
| Resolution : | 8 dots/mm, 384 dots/line |
| Effective Printing Width: | 48mm |
| Character | Character Set: | ASCII, GB18030(Chinese), BIG5 (24*24) |
| Print Font: | Codepage, ASCII 9×24, 12×24 |
| Character per Line: | 32 |
| Paper Spec. | Paper Type: | Thermal paper |
| Paper Width: | 57.5± 0.5mm |
| Paper Thickness: | 0.06~0.08mm |
| Paper Roll Diameter: | Max: 60.0mm |
| Roll Core Inner Diameter: | 13mm(min.) |
| Reliability | MCBF(MCBF)
Mean Cycles Between Failure: | 5 million lines |
| Barcode: | UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR,CODE93,CODE128 |
| Emulation : | ESC/POS |
| Driver : | Windows98/2000/NT/XP/Vista/Win7 |
| Interface: | RS-232/Parallel/USB/RS-485 |
| Paper Supply Method: | Drop-in easy paper loading |
| Power Supply (Adapter) : | DC9~24V±10%, 2A |
| Printer Mechanism: | SEIKO Brand |
| Auto cutter | Type : | Guillotine |
| Life : | 1,000,000 cuts |
| Cutting Method : | Full / Partial cut |
| Physical | Outline Dimension (WxDxH) : | 109x101x68mm |
| Installation Port Size : | 103 x 95x 65mm |
| Color : | Black |
| Weight: | 185g |
| Environment | Operating Temp : | 0~ 50 °C |
| Operating Humidity : | 10%~80% |
Application
