Product Specifications
Product Description

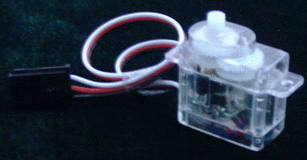

Product Name: Micro Servo
Model Number: SV60
Place of Origin: China
Features:
1) Transparent plastic crust
2) POM gear
3) Applications: micro planes, hand launch gliders, small electrics helicopters, etc.
Specifications:
1) Supply voltage: 4. 8~6. 0V
2) Speed: 0. 11sec/60o (no load running)
3) Torque: 0. 5kg. cm
4) Operating current: 100mA
5) Static current: 1mA
6) Dead band drain: 10uses
7) Connector wire length: 120mm
8) Dimensions (L x W x H): 21 x 20x 12mm
9) Weight: 6. 0g(with connector)
10) Connector: JR & JST plug
11) Outer packing: 100pcs/box
We manufacture R/C airplane model and accessory, including servo, motor, brushless speed controller, brushless motor, battery, mixer, etc.
