Product Specifications
| Prod Model: |
100G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Micro Switch Sensor |
| Frequency: |
2.4GHz |
| Transmitting Power: |
20dBm Eirp Launch |
| Frequency Density: |
5MW/Cm2 |
| Installation Height: |
4m(Max) |
| Power: |
2W(Va) |
| Maximum Voltage: |
42AC-60V DC |
| Maximum Current: |
1A |
| Retention Time: |
0.5s |
| Guide Line: |
2.5m |
| Type: |
Microwave Sensor Switch |
| Principle: |
Infrared |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Size: |
86 Type |
| Certification: |
CE |
| Application: |
Public |
Product Description

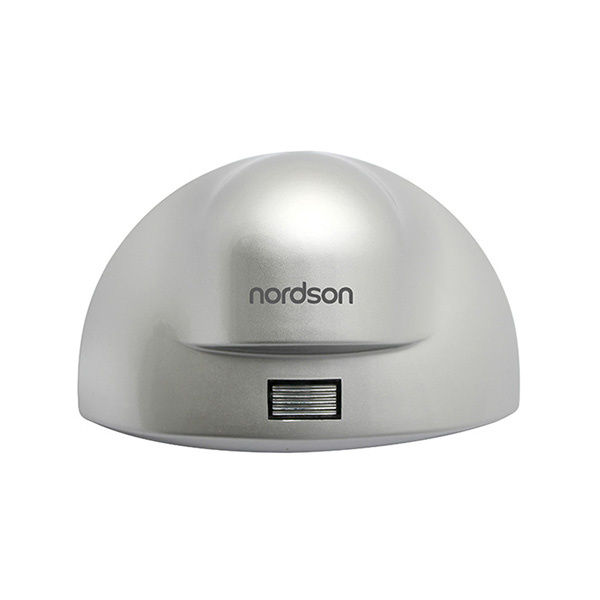

micro switch sensor ( 100G )
Technology:Microwaveµwave disposer Frequency:2.4GHz
Transmitting power: 20dBm EIRP Launch
Frequency density: 5mW/cm2
Installation Height:4M(MAX) Installation Angle:0-90 degree(lengthways) -30 to +30(lateral)
Detection Mode:Moving Min detection speed:5cm/s
Power: 2W(VA) Detection range:8m*4m(Installation Height 2.2M)
Maximum voltage:42AC-60V DC Maximum Current:1A
Maximum switching power:30W(DC)/60VA(AC)
Retention time:0.5S Guide line:2.5M
Working temperature:-20°C~+55°C
Color: Black/silvery
Anti-interference performance:R&TTE 1995/5/EC,EMC 89/366/EEC
Power Voltage 12V to 36V DC
Dimensions: 120*80*50mm
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China. After years of arduous pioneering, we create a powerful capabilities of product development and manufacturing. Ourbusiness scope involves magnetic lock, bolt lock, strike lock, door contract, accesscontroller, automatic door operator and access control solution.
Nordson pursuited for excellence all the time. We makethe brand to be top-ranking in China with advanced crafts and rigoroustechnologies. Up to now, all our products pass the certifications of CE, RoHS, andalso pass the quality test of security products by China's Ministry of PublicSecurity. Nordson's products sell and be agent in more than 100 countries andregions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc...Besides, Nordson provides OEM and ODM services also. Nordson'sproducts are widely used in business institutions, government agencies, residentialcommunities, universitiesand so on.
In future, Nordson will pursuite for more excellent performance, and provide more new items and better services. Our customers will growtogether with us, to be strong in the process Nordson become the most powerfulenterprise of security system in China.
History
2006 Nordson wasfouned.
We were agent to sell electric locks andaccess control system products.
2008 Nordson Electronicsopened a factory.
We supplied electric locks for buildingprojects and customized production for OEM customers.
2010 NordsonElectronics Co., Limited was founded in HongKong.
We fully entered theHongKong market.
2012 InternationalTrade Department of Nordson Electronics(Shenzhen) is founded.
We were absorbedto oversea maketing and development.
2014 The trademark "Nordson"was registered in China mainland.
We wereconcentrated on product development and branding.
2015 We are opening upa new age of access control.
