Product Specifications
| Prod Model: |
LYMR-1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Microplate Reader: |
1channel |
| Filter: |
450, 492, 630nm |
| Type: |
Microplate Reader / Elisa Reader |
Product Description

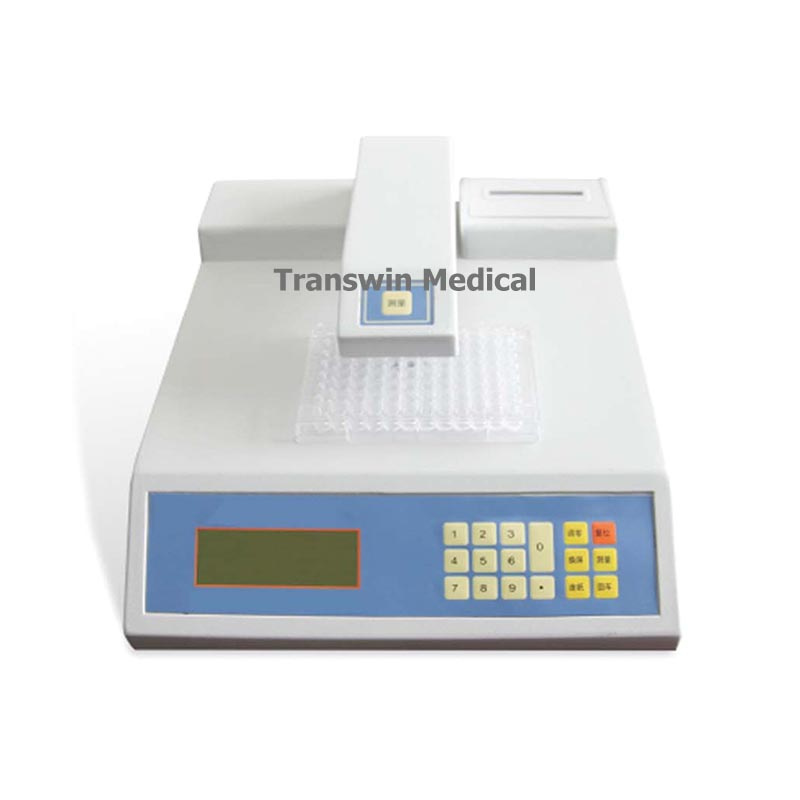

Microplate Reader / Elisa Reader
Item No.: LYMR-1100
Application:
It is mainly used on clinical immunity-tests in the hospitals or epidemic prevention stations. It has good characteristics such as high sensitivity, high accuracy, fast checking and the ease for operation etc. The instrument has a dedicated keyboard that enables you to rapidly change functions and set parameters. Display is a liquid crystal type with alphanumeric and graphic options. Setting and detecting operations are easy and straightforward.
The instrument is compatible with registered diagnostic EIA kit, primarily used in hospitals or some detection related to clinical immunology.
|
Specification |
|
Light source |
Tungsten halogen lamp(6V 10W) Average lifespan≥5000h |
|
Detector |
Photomultiplier Tube |
|
Mocrotiter plate |
Any format |
|
Wavelength range |
400-700nm |
|
Filter |
450, 492, 630nm. Accuracy: ±2nm, width≤7nm, other wavelength(410-600nm) optional |
|
Readingrange |
0.000-3.000Abs |
|
Measurement Method |
Manual single-wavelength (vertical single-optical-channel) |
|
Computing Model |
Qualitative (S/CO, P/N, N/P, Inhibitory rate, etc) and Quantitative analysis |
|
Repeatability |
Standard coefficient of variation CV≤1% |
|
Stability |
≤±1% |
|
Resolution |
0.001Abs(display, print); inner calculating 0.0001Abs |
|
Operating model |
Membrane keypad |
|
Display |
4x12 LCD display |
|
Printer |
Built-in |
|
Power supply |
AC220V±22v, 50Hz |
