Product Specifications
| Prod Model: |

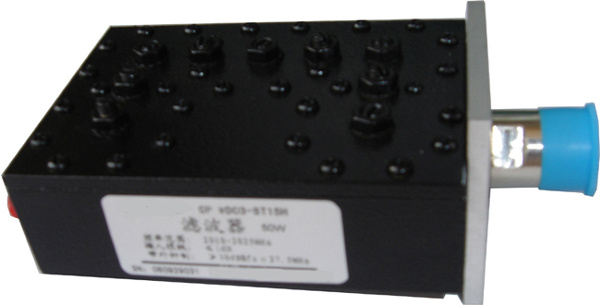

TD-SCDMA Filter series |
Product Description
Microwave filters are the dominant products of us. According to the market need, the products have covered all kinds of the frequency bands of telecommunication, includes 350MHz, 450 MHz, 700 MHz WIMAX, 800 MHz CDMA, 900MHz GSM, 1500MHz, 1800MHz DCS, 1900MHz PHS, 2000MHz TD-SCDMA, 2100 MHz WCDMA&CDMA2000(3G), 2400MHz WLAN, 3.5GHz-8GHz numerical microwave applications. Based on the traditional coaxial techniques, we have advanced techniques of compression and wave trapping, which could satisfy special needs.
Features:
Very high "Q", Very low insertion loss
Asymmetric pseudo elliptic designs, high selectivity
Machined coaxial cavity housing, high reliability, highpower handling
Transmission zero technology
Uses can choose filters of different terminals, bandwidths, Frequency range and suppressors according to your own needs.
| | |
Part no.
| CP MD03-BT15H
|
Frequency range (MHz)
| 2010-2025
|
Insertion loss(dB)
| ≤ 1.0
|
Pass band ripple(dB)
| ≤ 0.3
|
VSWR
| ≤ 1.2
|
Outside band rejection(dB)
| ≥ 30@ Fc ± 27.5MHz ;75@921-960MHz
≥ 75@1880MHz ;≥ 75@1929MHz
≥ 30@1990MHz ;≥ 30@2045-6100MHz
|
Power rating(W)
| 20
|
Impedance(Ω)
| 50
|
Connector type
| N-F/SMA-F
|
Temperature range
| -40 ~+80ºC
|
Dimensions(mm)
| 86X60X32 |
