Middle-Sized Drying Machine with High Efficiency
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
C E&ISO |
| Use: |
Drying |
| Color: |
Bule |
| Conditation: |
New |
| Model Number: |
Hj-Ii |
| Power(Kw): |
7.5+0.75+0.75 |
| Net Weight: |
2042kg |
| Output: |
500-600(Kg/H) |
| Temperature Of Hot Air: |
180-250'c |
| Gross Weight: |
2260kg |
| Structure: |
Barrel Type Drier |
| Movement Way: |
Combined |
| Operational Method: |
Continuous |
| Operation Pressure: |
Vacuum Dryer |
| Heating Mode: |
Electrcity |
Product Description

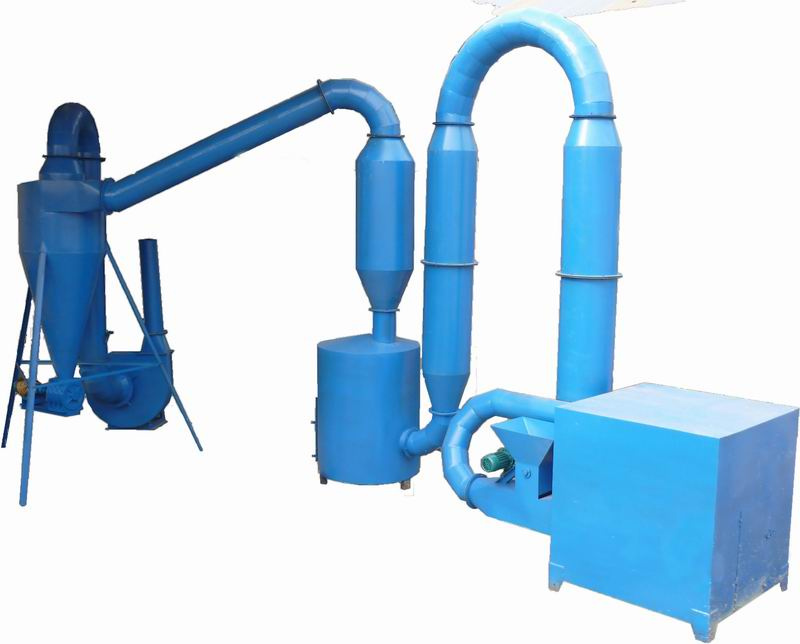

Middle-sized drying machine with high efficiency
Introduction:
Drying machine is suitable for drying materials like sawdust, rice, hull, milling, wheat straw, , corn stalks and so on. The moisture of wet materials is at 20-60%. This wood dryer reduces the moisture to 8-12% with the advantage of lower cost consumption and high efficiency.
This dryer is suitable for drying materials of moisture 30-60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8-12% with the advantages of lower cost consumption and high efficiency.
1. Hot air blows quality
2. Drying efficiency is good
3. Lower cost consumption
Technical data:
Output: 400-600 KG/H
Raw materials diameter: <1mm & < 5mm
Temperature of Hot Air: 180-250° C
Consumption of Wood Waste: 35-40KG/H
Power (Centrifugal Fan+ Air Lock): 7.5 KW+0.75 KW+0.75KW
Net/Gross Weight: 2040/2260KG
Welcome to talk over with us!
Certification CE&ISO
Use drying
Color bule
Color new
Model Number HJ-II
Power(kw) 7.5+0.75+0.75
Net Weight 2042kg
Output 500-600(kg/h)
Temperature of Hot Air 180-250'C
Gross Weight 2260KG
|
Model |
HJ-I |
HJ-II |
HJ-II |
|
Power(kw) |
4 |
7.5+0.75+0.75 |
11+0.75+0.75 |
|
Output(kg/h) |
300-400 |
500-600 |
700-800 |
|
Diameter of materials(mm) |
< 1mm & < 5mm |
< 1mm & < 5mm |
< 1mm & < 5mm |
|
N. W/G. W |
1000/1100 |
2040/2260 |
2850/3080 |
With the development of industrial and social economy, problems of the imbalance between supply and demand of traditional energy have become more and more serious. All people are laying their eyes on green bio-fuel business to produce renewable biomass fuel briquettes.
As a professional manufacturer in exporting charcoal/biomass briquette plants for agro-forestry wastes, we are leading a team working to exploit full set of various manufacturing and exporting briquetting equipments, including charcoal/biomass briquette machine, straw fuel briquette press, pellet mill, conveyor and grass chipper, etc. We have already got CE certificates for all of our equipments.
The raw materials can be sawdust, rice husk, rice straw, cotton stalk, cottonseed skins, wood, wood shavings, wood chips, mustard stalk, wheat straw, soybeans husk, coffee husk, sunflower husk, peanut-shell, sugar cane bagasse, maize stalk, palm fruit bunch, paddy straw, tobacco waste, bamboo dust and any other crop wastes.
Our principal products are: Charcoal/biomass briquette machine, Hammer Mill, Wood Crusher, Dryer, Carbonization Furnace, Belt/screw Conveyor, Automatic Proportioning Feeder, Grind mill, Grass chipper, Charcoal Briquette Press for pellet/tablet/powder and Straw fuel briquette machine/feedstuff pellet machine.
Benefiting from strategic partnership relations with many domestic and international purchased team, up to now the customers from more than 40 countries have purchased our equipments, such as France, Germany, South Korea, United Kingdom, USA, Russia, Sweden, Hungary, Saudi Arabia, Japan and so on.
We pay our closest attention to customers' complete satisfaction with high quality, swift delivery, prompt response, and especially cost efficiency.
Welcome to our factory to visit. And we will provide our best equipments and technologies at the reasonable price to meet your requirements.
