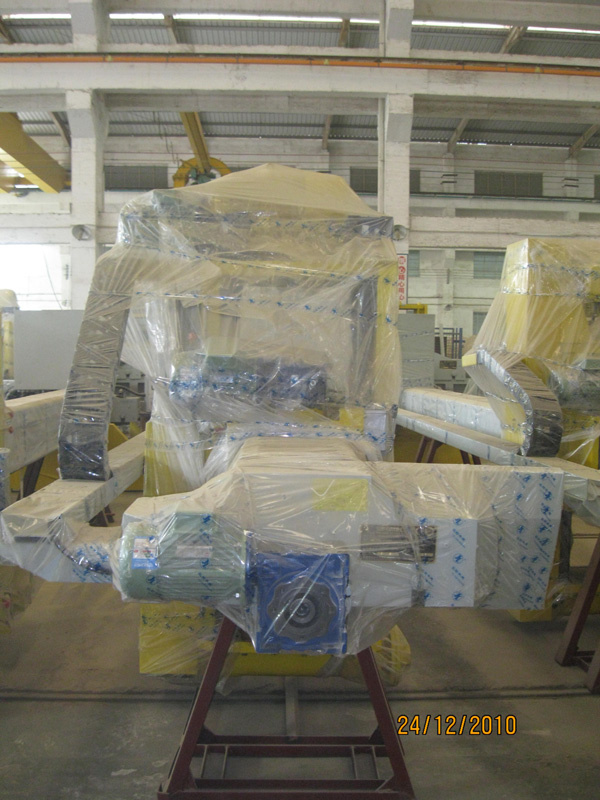

Middle Stone Cutting Machine

Name: Middle Stone Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 682822995
Availability: InStock
Rating: 4.6 (107 reviews)

Supplier:	FUJIAN NANAN JULUN MACHINERY CO., LTD.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine
Type For Cutting Machine:	Stone Cutting Machine
Automation:	Automatic

Product Description

SQC-1200 uses big span bridge structure. The crossbeam and side beam are sealed by immersion guide way. The lube make thin oil film between channeled rail and driving block, and putting the side seam protector can make the lowest cost. The mail engine uses imported frequency converter to achieve to achieve step less speed regulation cutting with360 revolved worktable, nimble rotation, accurate position, good steel and stable cutting. Is suits to process stones with high value and tombstone craft products.

Name	Unit	SQC-1200A	SQC-1200B
Saw diameter	mm	600-1200
Lifting stroke	mm	780
Table size	mm	3000*800	3800*800
Table rotation range	°	0°-360°
Water consumption	L/min	70
Main motor power	kw	22
Dimensions (L * W * H)	mm	640040004400	700043004400
Total weight	kg	6100(With steel frame7400)	6800(With steel frame8200)

FUJIAN NANAN JULUN MACHINERY CO., LTD. is one of the most strength and the famous enterprises in Chinese stone material equipment field. It is a science and technology enterprise specialized in production of big and medium sized stone material processing equipments and located at Shijing Town, Nan'an City with easy access, which is well known as China's Hometown of stone material. The company has modern standardization factory buildings and modernized scientific research buildings with first-class production processing equipments.
