Product Specifications
| Prod Model: |
LY09BM6B1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
130* 105* 40mm |
| Type: |
Mifare Card |
| Material: |
Brass |
| Surface Treatment: |
Brushed Stainless Steel |
| Style: |
Modern |
| Remote Control: |
With Remote Control |
| Power Type: |
DC |
| Data Storage Types: |
Online |
| Certification: |
CE |
| Color: |
Silver |
| Usage: |
Commercial |
Product Description
Specifications:
1. Unlock: M1 card, remote controller, mechanical key.
2.304 stainless steel front panel, could swipe card under water.,
3. Door hall sensor, auto-lock, mute.

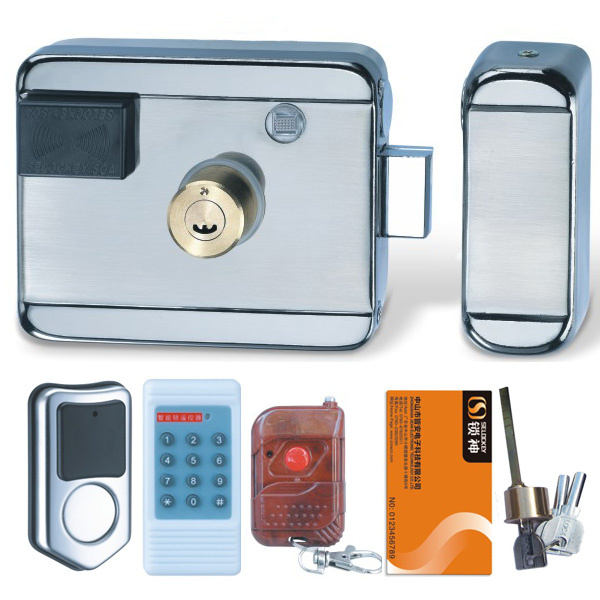

Product Name: Zhongshan Mifare card door lock manufacturer, keyless door lock(LY09BM6B1)
Product Model: LY09BM6B1
Product Group: Electronic door lock(M1 card)
Features:
¤ Unlock: M1 card, wireless remote controller, mechanical key.
¤ Using special Mifare1 card; Can store 1010 cards and remote controls, with double sides card readers.
¤ The card-swiped panel is 304 stainless steel, could swipe card under water.
¤ Built-in spare 4*AA batteries for emergency power supply.
¤ Door hall sensor, automatically lock, mute.
¤ The lock is sound & light hint and alarm, wrong unlock or open without entrance, it will be automatically lock after 5 seconds.
¤ Built-in wireless send & receive module, be able to wireless send and receive door-open signal and alarm signal.
¤ Double sides lock cylinders and double sides readers, and you could install the lock freely by open with left or right side, in-swing or out-swing, and exchange with traditional electronic lock without any change. Besides, the rim door lock with external enabling signal can mate with building intercom, door access control, smart security system.
¤ 2mm thicknesssteel lock body, full-steel thicken lock tongue, metal gear.
¤ Metal slow-down gear unit enables higher strength and longer span life.
¤ Adopted brushless stepper motor could completely overcome large drive current caused by blocked.
¤ Can be add or cancel relative funtions freely according to user's requirements.
Parameters:
Card issue: Remote programming control, master card, or network.
Card type: Mifare one S50 card;
Capacity: 1010PCS cards and controllers, and can be extended.
Card inductive distance: >25mm
Wireless remote control distance: >50meters
Working temperature: -30~50 ° C
Humidity: <95%
Working voltage: DC 10~18V
Unlocking signal voltage: DC 6V~30V
Built-in voltage: 6V (4*AA batteries)
Low voltage alarm: ≤ 4.5V 8%
Working current(MAX): < 500mA
Quiescent current: <76uA
Support external alarm power: < 10W *
Anti-interference: IEC801-5 standard
Anti-surge: IEC801-5 standard
Working life: >1, 000, 000 times
Networking way: TTL232 or RS485 (BM serial)
Emergency opening:
A. Mother card;
B. Mechanical key;
C. Built-in spare battery could ensure to unlock with M1 card while power cut off.
Application:
Our electronic door locks are widely use in security system, building telecom, rental houses, access control system, etc.
Delivery:
Sample: 1-3days
Order: 3-10days
Packing:
1PCS/box, 1.5kg; 12box/CTN. Packed with tape.
Lock bodyc Size: 130*105*40mm
Carton size: 350*260*240mm, 20kgs, 0.022CBM.
