Product Specifications
| Prod Model: |
Contactless smart card |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chips: |
MIFARE Ultralight EV1 |
| Craft: |
Offset/Silk Screen Printing, Lamination |
| Personalization: |
Barcode, Laser Printing, Encoding, etc |
| Sample: |
Free Samples Available |
| Delivery Time: |
1-2 Weeks Per The Qty |
| Application: |
Public Transportan, Access Control, etc |
| For: |
Bus, Metro etc |
| Printing: |
Logo, Picture, Number, Barcode etc |
| Available: |
Personlization |
| Item: |
RFID MIFARE Card |
| Function: |
Information |
| Frequency: |
High Frequency |
| Material: |
PVC or Paper |
Product Description
Application:Single-use ticket,Public transportation,Hotel accessetc
Personalization:Barcode,Laser printing,Encoding etc
Material:Paper or PVC
Size:86*54mm

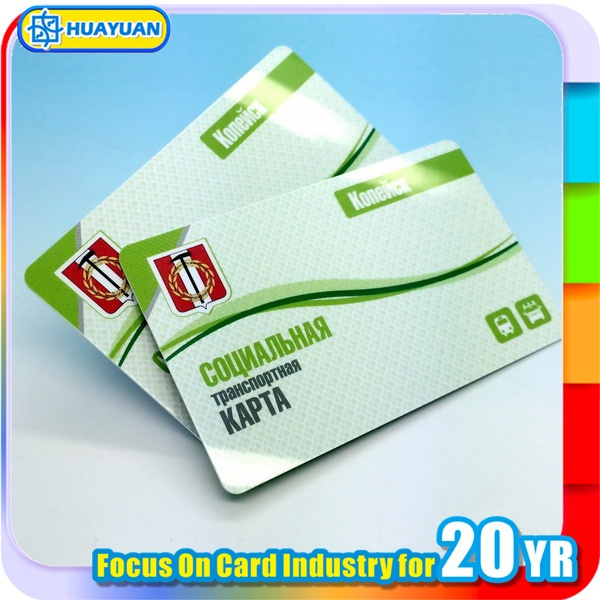

Mifare Ultralight® EV1 Proximity contactless smart card for access/public transportation
| 13.56MHz Paper card/metro ticket |
| 1. Description: | With the most recently introduced family member, MIFARE UltraLight, now being used in single-trip paper tickets, the way is open to completely integrated, truly cash free systems for transport service providers.
As part of a complete MIFARE contactless ticketing system, MIFARE UltraLight allows transport operators to use a single type of contactless reader interface, rather than the variety needed to cope with a part- contactless, part-cash, part magnetic stripe structure. |
| 2. Material: | Papers |
| 3. Size: | Dimension: CR80 85.60 X 53.98mm
Thickness: 0.38mm,0.5mm,0.6mm or customized |
| 4. Available crafts: | Printing:
- Pre-printed customer colour
Artwork
- Thermal Printable
- DOD Number printing
- Laser engrave printing
Various:
- Chip Encoding |
| 5. Chip | MIFARE Ultralight® EV1 |
| 6. Applications: | -Single-use ticket
-Multiple-use ticket (book of tickets)
-Publice transportation- Store value
-Pre-paid voucher |
| 7. Lead time: | 7-8 working days on receipt of payment |
| 8. Delivery way: | By express ,by sea or air |
| 9. MOQ: | 1000PCS |
Mifare Ultralight® EV1 RFID card is is based on open global standards for both air interface and cryptographic methods. It is compliant to all 4 levels of ISO / IEC 14443A and uses optional ISO / IEC 7816-4 commands.
(Mifare Ultralight® EV1 are trademarks of NXP B.V. )
Mifare Ultralight® EV1 RFID card is ideal for service providers wanting to use multi-application smart cards in identity, access, loyalty applications and transport schemes. It fully complies with the requirements for fast and highly secure data transmission, flexible memory organization and interoperability with existing infrastructure.
Featuring an on-chip backup management system and the mutual three pass authentication, a Mifare Ultralight EV1 card can hold up to 28 different applications and 32 files per application. The size of each file is defined at the moment of its creation, making Mifare Ultralight® EV1 a truly flexible and convenient product.
Standard Features
- Fully ISO / IEC 14443 A 1-3 compliant
- Backwards compatible to MIFARE Ultralight
- 106 kbit/s communication speed
- Anti-collision support
- Fast read command
Mifare Ultralight EV1 RFID card Key Features:
- Card dimensions: 86 X 54mm
- Thickness: 0.84mm
- Material: PVC, PET etc
- Surface: lamination (gloss/mate)
- Chip: MIFARE Ultralight® EV1
- Frequency: 13.56MHz
- RF Protocol: ISO / IEC 14443 A 1-3 compliant
- Data storage time: minimum 10 years
- Operating temperature: -20 to +60°C
- Stockage temperature: -20 to +65°C
- Package: 200PCS per Inner Box; 5000PCS per Carton, each Carton gross weight is 35kgs
Applications:
- Advanced public transportation
- Access management
- E-Government incl. social services
- Identity
OPTIONAL PRODUCE
Printing:
- Logo/Graphics/Photo
- Serial Number
- DOD Number
- Barcode printing
- Overlay Foil
- Signature Panel
- Name Personalisation
- Photo Personalisation
Magstripe:
- LoCo300
- HiCo2750
- Magstripe Encoding
Various:
- Hologram
- Security Printing
- Chip Encoing
CHIP AVALIBLE
Mifare Ultralight® EV1 ( NXP )
