Product Specifications
| Prod Model: |
SY-3B1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| N.W.: |
2000kg |
| Type: |
Worktable Milling Machine |
| Object: |
Gear |
| Structure: |
Bed type |
| Controlling Mode: |
Program Control |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
Product Description

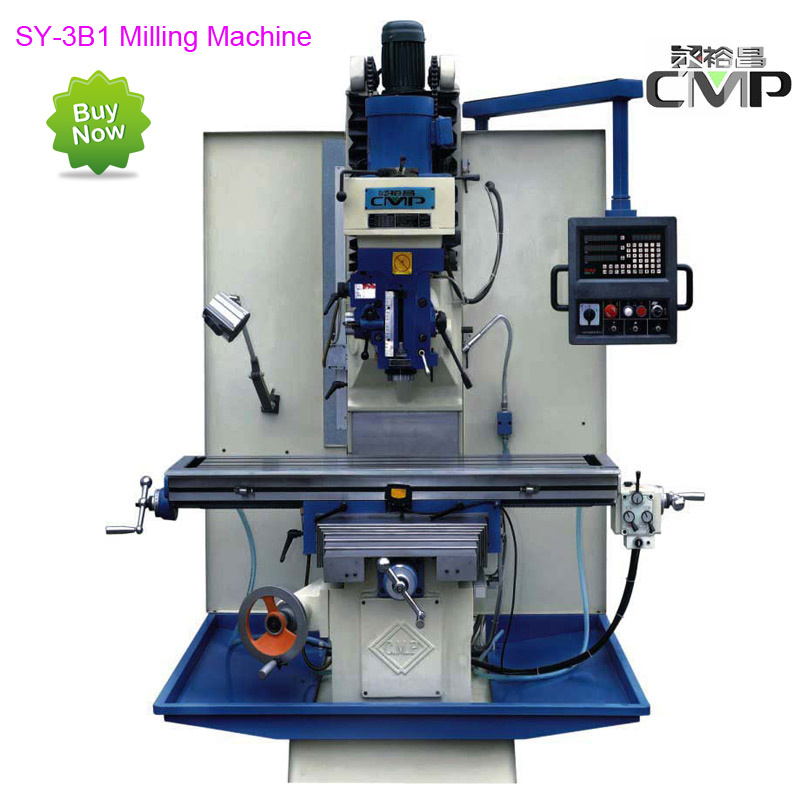

Item No.: SY-3B1 Milling Machine
Specification of machine:
Table size: 305X1370mm
Longitudinal travel(X): 720mm
Cross travel(Y): 400mm, 450mm
Vertical travel(Z): 580mm
Qty of T solts: 3
Size of T solts: 18mm
Spindle taper: NT40
Spindle speed: 10steps(70~2800rpm)
Spindle center to column surface: 400mm
Spindle nose surface to table surface: 120+580mm
Spindle power feed: 0.038/0.076/0.152/mm
Spindle travel: 150mm
Vertical milling head tilt angle (R&L): 90°
Spindle motor: 5HP
Cooling motor: 1/8HP
Auto lubricate AC motor: 3W
Rapid elevating motor(Z): 1/2HP
Machine weight: 2000KG
Package(length X width X height)1900X1450X2150mm
All specifications of product to change without notice in advance.
Yong Yu Chang (PU Tian) Machinery Making Co., Ltd. Establish in the end of 1997. As an enterprise with sole investment from Taiwan which dedicated to manufacture of Machine Tool. We have Milling Machine, CNC Milling Machine, Radial Milling Machine, Bench Milling Machine, Vertical and Horizontal Milling Machine, Radial Drilling Machine, Grinding Machine, and complete specifications milling head and so on. We have got consistent high praise in the domestic and overseas markets.
Our company has Taiwanese advanced technology and management experience, in especial, we have an excellent team with powerful Taiwanese technology strength, rich management experience and top technological talents in the milling machine manufacturing. We continuously improve product quality, to develop new precision higher products. Our products have exported to Europe and America, Southeast Asia and have enjoyed good reputation. Company's offices are distributed all over the country. Insisting on the motto 'Creating High-Quality Products to Satisfy All Consumers'. Yong Yu Chang will wholeheartedly service for the domestic and overseas customers. Hope Yong Yu Chang (brand: CMP) high-quality and high-precision products will carry forward in both domestic and overseas market.
