Product Specifications
| Prod Model: |
DP827G8P2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Communication Antenna |
Product Description
Application:
Indoor/in-building or outdoor Coverage
LTE System in crowded building to insure data speed
CDMA, GSM, DCS, 3G/UMTS, WiFi, ISM Application
Features:
Wide beanwidth
Suitable for wall mounting and pole available
Low, aestheticall pleasing profile

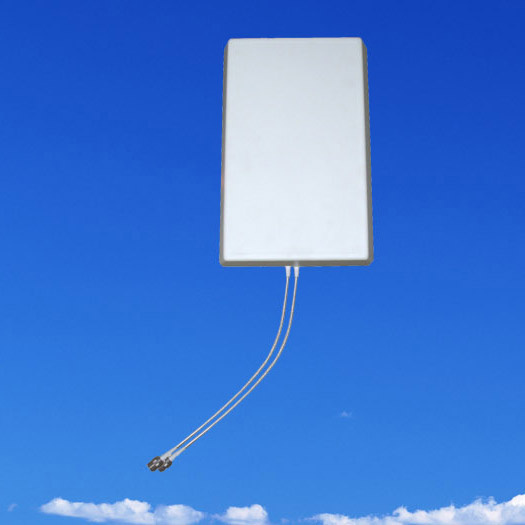

Model: DP827G8P2
Frequency (MHz)800~9601710-2700
PolarizationVH & V
Gain in Vertical7± 1dBi8± 1dBi
Gain in Horizontal7dBi7.5dBi
Horizontal Beamwidth85° ± 5° / 60° ± 5° 70° ± 5° / 55° ± 5°
Vertical Beamwidth60° ± 5° / 85° ± 5° 55° ± 5° / 70° ± 5°
Front to Back≥ 15dB ≥ 15dB
Ports Isolation ≥ 25dB ≥ 25dB
VSWR≤ 1.5
Passive IM3<-150dBc ( 2x tones 20Watts)
Max Power50 W
Mechanical Specification
Connector2 x N-Female
Dimension340× 220x65mm
Weight1.5Kg
