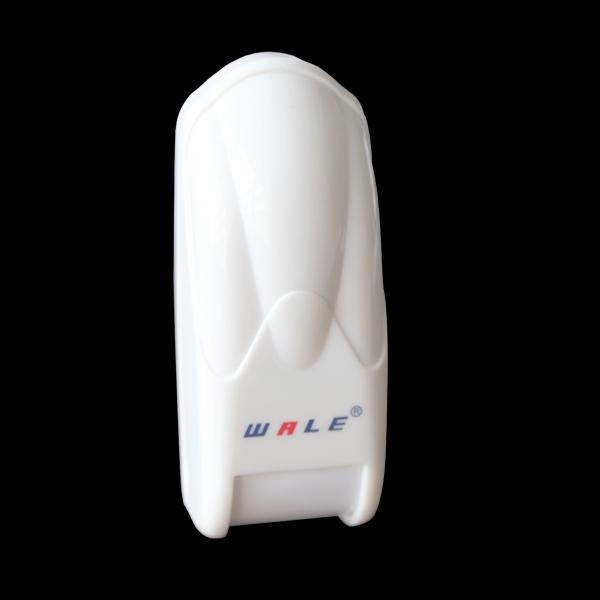

Min Curtain IR Intrusion Sensor PIR Motion Detector (WL-800)

Product Specifications

Prod Model:	WL-800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Detection Distance:	3.6m*6m
Working Voltage:	9V-16VDC
Certificate:	CE and RoHS
Guarantee:	3 Years Guarantee
Type:	Sensor
Installation Mode:	Wall Mounted
Application:	Home, Industry, Communication Electronic Product
Usage:	Anti-Theft
Detection Type:	PIR
Output Signal Type:	Wired
Material:	ABS

Product Description

Specifications

Mini curtain PIR detectors:
1. Self-checking function
2. High sensitivity
3. Non-flammable case
4. Alternate polarity pulse


Mini curtain PIR detectors

Feature:
1. Suitable for door, window, terrace and ceiling protection
2. Has the function of self-checking
3. Vertical or level sense, high sensitivity, non-flammable case
4. Alternate polarity pulse count, one or two pulse can be select
5. Environment memory, automatic temperature compensation, good performance

Model	WL-800
Working temperature	-10 - 50 centigrade
Working humidity	5%-95%RH
Power	10V-16V DC  12.5mA
Detecting range	6*3.6m
Anti white light	8000LUX
Anti electromagnetic interference	>30V/M (30MHz-1GHz)
Dimension	75*28*26mm
