Product Specifications
| Prod Model: |
SLGA09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Position Sensor |
Product Description

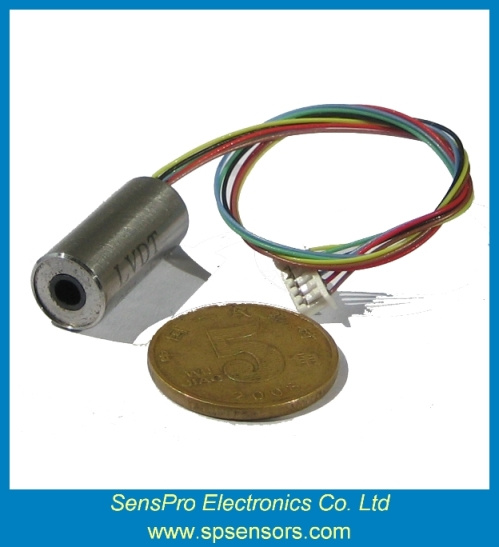

SensPro Electronics' SLGA09 Series of diameter 9.5mm AC miniature LVDT is small size contactless linear position sensors for both OEM and end user applications, range from ± 1.25mm to 25mm optional.
The lightweight core well suited for high response dynamic measurements as well as helps minimize stresses and preserves the structural integrity of the core actuation assembly.
High sensitivity results from close electrical coupling between coil and core. Magnetic stainless steel housing provides electromagnetic and electrostatic shielding.
| General Specification |
| Input voltage: | 3V rms (nominal) |
| Frequency Range : | 10 KHz |
| Operating Temperature: | -55°C to 150°C |
| Null Voltage: | <0.5%FS |
| Full range output: | 200~2000mV |
| Coil Form Material: | High density, glass-filed polymer |
| Housing Material: | 304 stainless steel |
| Lead wires: | 32AWG stranded copper, Teflon-insulated, 300 mm long (nominal) |
Performance and Mechanical Specification
| Parameter | SLGA09 |
| Stroke (mm) | ±1.25 | ± 2.5 | ±5.0 | ±10 | ±25 |
| Tube length (mm) | 20.6 | 25.4 | 46.8 | 84 | 142 |
| Core length (mm) | 12.7 | 15.6 | 28 | 50.6 | 76 |
SensPro Electronics supplies OEM pressure (static and differential), temperature, proximity and photoelectric transducers, sensors as well as module, components, assemblies and sensor based products manufactured in China but meeting international standards.
SensPro Electronics has rich experience in designing and manufacturing sensor and sensor based products.
We design and manufacture:
* Sensor solutions for pressure and position
* Prompt response to inquiries
* competitive prices
* Professionlism, Effectiveness, Quality
We can meet customers requirements on perfomance and cost. SensPro is continuously focusing on innovation to meet our customer's changing requirements, while keeping the world in harmony with the environment.
SensPro Electronics offers one year warranty to the original purchaser. It will be replaced free of charge for any defective not including sensors being modified, misused, neglected or installed where the application exceeds published ratings.
