Product Specifications
| Prod Model: |
CGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
3000-24000 Bph |
| Raw Materail: |
SUS 304 |
| Quality: |
High |
| Brand: |
Beierde |
| Useage: |
for Filling Water/ Non-Gas Drink etc |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Weighing-type Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Filling Principle: |
Pressure |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description

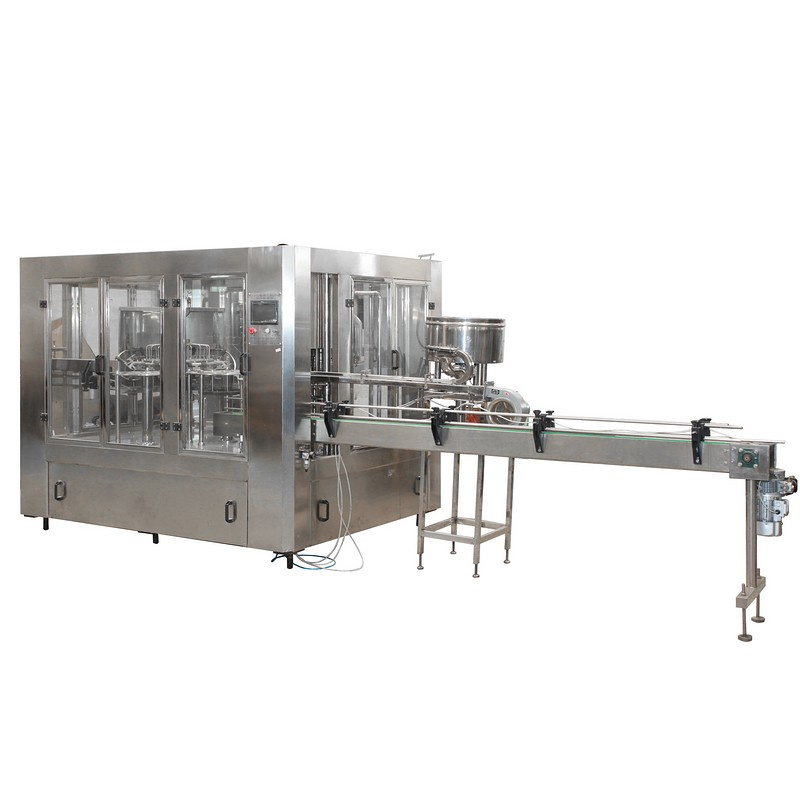

Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
APPLICATION:
This series of machines are mainly used for the Non-Aerated drink such as mineral water, pure water, non-gas wine drink and so on, with optional capacity from 3, 000 to 24, 000BPH. The machine design is shorten the time for the drink material contact with outside, Increased the sanitation condition and throughout and economy benefit.
The washing, filling and capping will be finished just by one machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality SUS304 stainless steel.
Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
Our service
What service can we offer you?
Fully new machine with good wooden package will be delivery to you.
Your inquiry related to our product & price will be replied within 24hours
Well-trained & experienced staff is to answer all your inquiries in English and Chinese
Experienced engineer will be dispatched in 7 days after receiving customer's demand.
Working time: 8: 30am ~6: 00pm, Monday to Saturday (UTC+8).
OEM & ODM projects are both available
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.
Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
Packing and shipping
Packing materail: Standard wooden package.
Delivery time: 20 Days after receiving downpayment and bottle sample.
Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
Company information
Zhangjiagang Beierde Beverage Machinery Co., Ltd., located in Zhangjiagang City Jiangsu Province China,
As the leading beverage bottling machinery in China, we had been in this field for more than 15 years and own more than 500 production lines running all over the world.
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic/full automatic bottle blowing machines, and injection molding machines.
Our company regards "Honesty first and Quality first" as our management principle and has set up a strict quality control system.
Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
Our workshop
Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
Certificate
Welcome to BEIERDE Machinery
Mineral/pure water washing/filling/capping 3in1 mono-block filling machinery
|
Model: |
CGF14/12/5 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/10 |
CGF40/40/12 |
|
Capacity:500ml(b/h) |
3500 |
7500 |
10000 |
14000 |
18000 |
|
Suitable Bottle:(mm) |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
|
Suitable Cap: |
φ50-φ110 (mm) |
|
Filling Pressure: |
0.2-0.3 Mpa |
|
Power: (W) |
2.2 |
3.84 |
5.6 |
6.3 |
7.3 |
|
Filling Temperature: |
Room Temperature |
|
Size L×W×H (mm) |
2400×1670×2350 |
2865×2170×2350 |
3700×2570×2350 |
3800×2950×2400 |
4500×3400×2400 |
|
Total Weight:(kg) |
2500 |
3000 |
3800 |
5000 |
6500 |
Zhangjiagang Beierde Beverage Machinery Co., Ltd., located by the side of the Yangtze River, National Civilization City- China Zhangjiagang City, enjoys pleasant scenery and convenient communications of land ways and water ways, renowned as " A land of fish and rice" and " An oasis of the South Yangtze River".
As the leading beverage bottling machinery in China, we own more than 500 production lines running all over the world.
Main Products: Three-in-one filling machine (include rinser, filler, capper).
1.2000-23000 BPH Table-Water Bottling Line;
2.2000-16000 BPH Hot Bottling Line;
3.2000-15000 BPH Carbonated Beverage Bottling Line;
4.100-1800 Barrels/Hour Filling Line, 3-Gallon & 5-Gallon Water Filling Line;
5. PET Preform Injector and Bottle Blow moulding machine;
6. Water Treatment;
7. Packing machine;
8. Carbonating Mixer;
9. Turn key Project.
Our company regards "Honesty first and Quality first" as our management principle and has set up a strict quality control system.
