Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
5000-80000bph |
| Application: |
Pure Water, Still Wate Mineral Water, etc |
| Automation: |
Fully Automatic |
| Certificate: |
CE, UL, SGS, ISO, FDA |
| Container Can Be Handled: |
Pet Bottle |
| Size Of Bottle Can Be Handled: |
0.25-2.5L |
| Main Matieral: |
Stainless Steel |
Product Description

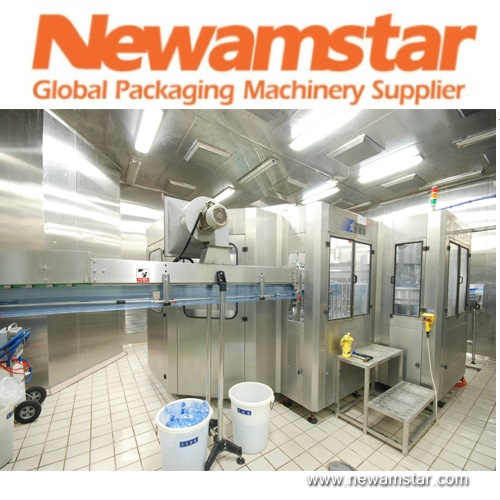

Mineral Water Rinsing Filling Capping Machine
The whole machine is mainly composed of rinser, filler and capper.
Main Features
Rinser
1, The rotary wheel is a fully SUS304 stainless steel welded structure.
2, The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3, The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4, All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5, The rinser is driven by driving system positioned inside machine frame via gear transmission.
6, Transfer Starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Filler
1, Rotary wheel fully made of stainless steel SUS 304.
2, Gravity filling method.
3, Filling valves are made of SUS316L.
4, Filling valves are reasonably structured with accurate filling.
5, Filling flow can reach 200ml per second.
6, Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
7, Level of cylinder is controlled with float-ball.
8, Filler is driven through gears inside the machine frame.
9, Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck
Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:
1, Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
2, Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
3, The capper is equipped with inlet bottle detection switch.
4, Centrifugal way of cap arranging is adopted to reduce damage of caps.
5, A cap inspecting system is applied to control on-off of elevator.
Newamstar Packaging Machinery Co., Ltd.
|
Main Composition |
|
Material of filling valve |
Stainless steel SUS316L |
|
Main motor |
ABB/ SEW |
|
Sliding bearing |
Igus. |
|
Frequency inverter |
MISBUSHI |
|
Touch screen |
PROFACE/MITSUBISHI |
|
PLC |
MITSBUSHI |
|
Pneumatic components |
FESTO/SMC |
|
Seals |
Busak+Shamban (America) |
|
Photocell switch |
Banner (America) |
|
proximity switch |
TURCK (Germany) |
Newamstar is expert in Liquid (Beverage) Packaging Machinery. As a national key high-tech enterprise, it has an area of more than 150, 000 m2 which is the largest R& D and manufacturing base in Asia in this field.
The headquarter is located in Zhangjiagang city, Suzhou, China, within 1-2 hours from Wuxi Shuofang International Airport, Shanghai Hongqiao International Airport or Shanghai Pudong International Airport.
Newamstar always insists on technology innovation, creating more than thirty "China firsts": First PET 3-in-1 water filling line, first PET aseptic filling line, first PET beer filling machine, first 51, 000BPH PET bottle blowing-filling-capping combibloc, etc.
Newamstar covers four major fields: Water, juice, CSD, milk, liquid condiment and personal care products. We serve domestic & International brands: Danone, Otsuka, Wahaha, Dali, Zhongfu, Suntory, President, Yinlu, C'estbon, Ganten, Aoke, Jiajia, etc.
We have exported to more than 70 countries and regions as well as 1, 500 turn-key projects.
We offer technical support to the customer and attach great importance to machine quality and after-sales service.
