Product Specifications
| Prod Model: |
24KEY12V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Audio / Video Players |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |

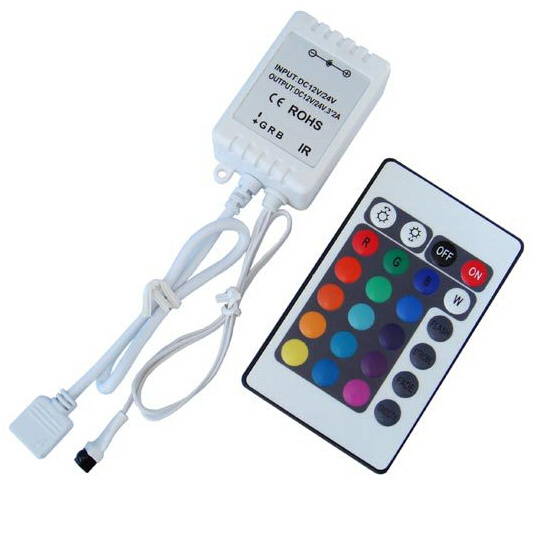

Product Description
![]()
Specification
Output: 3 COMS drain-open output
Connecting Mode: Common Anode
Control Range: 5-10 meters
Supply Voltage: DC 12V
Max. Load Current: 2A each color
Product size:L62*W35*H23MM
Item weight: abnout 40g
| Output: 3 COMS drain-open output |
| Connecting Mode: Common Anode |
| Control Range: 5-10 meters |
| Supply Voltage: DC 12V |
| Max. Load Current: 2A each color |
| Product size:L62*W35*H23MM |
| Item weight: abnout 40g |
Mode & Pattern:
16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change
16-classes Static Mode Dim Control
16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change
Control range: 10cm - 500cm RGB LED Strips
Support 5 meters SMD 5050 30LEDs/M LED Strips or 5 meters SMD 5050 /3528 60LEDs/ M LED Strips
Features
1, the product of the constant pressure controller, a standard product for the wide voltage 12-24V supply voltage can be used in this range of power supply;
2, the output for the three loops, each channel allows a maximum current of 2A, the band 12V30 lamp / light meter with 10 meters, 12V60 light / meter lights with 5 m;
3, 44-key infrared remote control mode, intuitive and easy to use remote control, remote control distance of up to 8 meters;
4, with power and memory function, each power will be preserved when the last power-down mode change;
5, 32 kinds of modes, including 20 kinds of static color, six kinds of dynamic changes and six kinds of custom modes; static color to brightness adjustment, grayscale 8, when the dynamic changes can speed adjustment speed stage is 32; each Custom buttons are marked with a red, green and blue by the arrow keys to adjust out six of their favorite colors, details see the following instructions;
6, when adjusting the brightness and speed, you can hold down the button and hold direct, rapid bursts of adjustment;
7, in order to achieve synchronization more lamps can be used with the company's RGB signal amplifier for power expansion, the specific operation see amplifier specifications;
