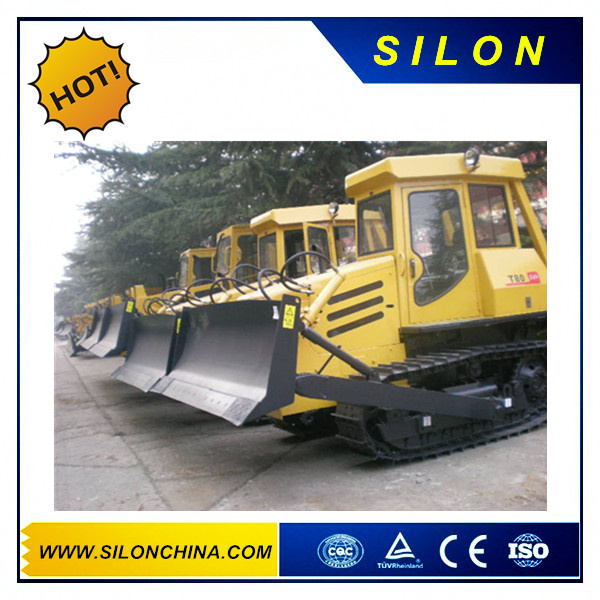

Mini Bulldozer Crawler Bulldozer Price Ts80
Product Specifications
| Prod Model: |
TS80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Weight(Not Including Ripper): |
8600kg |
| Bulldozer Blade (W*;H): |
2480*922 |
| Engine Flywheel Power: |
70kw |
| Overall Dimensions(Lxwxh): |
4200 *2480*2740mm |
| Engine Model: |
Lr4a3z-22 |
| Max. Digging Depth (Mm): |
370mm |
| Towing Equipment/Ripper (Optional): |
Fixed/3-Teeth |
| Max. Lifting Height Of Dozer Blade: |
736.5mm |
| Max. Digging Depth Of Dozer Blade: |
370mm |
| Caterpillar Track Width: |
400m |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Crawler |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
Features
1)Our TS80 crawler bulldozer is fitted with YTO LR4A3Z22 boosting engine. The engine can offer strong power and is characterized by low running noise and low fuel consumption.
2)With 4F+2R fixedshaft mechanical gear shifting gearbox, the construction equipment adapts to various working environments.
3) Its traveling mechanism has rigid chassis and semi-rigid hanger.
4 )Advanced operation control system, fully hydraulic boosting steering.
5) This earth mover is suitable for bulldozing operations in narrow areas.
6 )It is equipped with standard heating and ventilation devices. Air conditioner is optional.
7) It is of high reliability and high working efficiency.
8)The pushdozer shovel size is 2480W×922H mm. The maximum lifting height is 736.5mm.The maximum in-soil depth of dozer shovel is 370m
.
Technical Parameters
| ITEM | TS80 |
| Total weight | 8600kg |
| Max. towing force | 69kN |
| Engine model | LR4A3Z-22 |
| Engine rated power/speed | 70/2200kW/r/min |
| Fuel consumption of the engine | ≤246g/km.h |
| Engine max. torque | 313.9N.m |
| Forward I~IV gears | 2.4~10.4km/h |
| Re verse I~II gears | 4.9~8.9km/h |
| Caterpillar track width | 400mm |
| Ground pressure | 53kPa |
| Overall dimension(L×W×H) | 4200×2480×2740mm |
| Bulldozer blade (W×H) | 2480×922mm |
| Max. lifting height of dozer blade | 736.5mm |
| Max. digging depth of dozer blade | 370mm |
| Towing equipment/ripper (optional) | Fixed/3-teeth |
LuoYang Silon Industrial Co., Ltd is a leading Chinese construction machinery exporter, located in the city of Luoyang, which is known as the "Millennium Imperial City'' and ''The City of Peony". Since our company was founded, based on the advantage of XCMG which is the No. 1 Chinese construction machinery manufacturer, we continually introduce top Chinese construction machinery enterprises and their products to international markets, such as Changlin, Zoomlion, LiuGong, Foton Lovol, HBXG, Hyundai, Komatsu, YTO etc.
As the authorized dealer of XCMG and also With "Customer First" as our constant serving tenet, Silon Industrial has emerged as a renowned exporter of a wide range of top Chinese Construction Machinery., We won the good fame and reputation from reliable quality, competitive price and excellent after-sales service, We will scrupulously abide by our management concept of "Honesty, Professional, and Win-Win".
With a rich experience of many years, we have acquired the requisite expertise and excellence in our domain. Having scaled phenomenal heights of success, today we stand tall amidst a number of competitors across the world. A well coordinated and expertly managed operation system and professional international sales team enable us to turn orders into final products and export them to approximately 60 countries and several regions across the globe.
Product Range:
Silon Industrial brings you a wide range of construction machinery series, as follows:
- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Truck-mounted Crane
- Earthmoving Machinery, such as Wheel Loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
- Road Construction Machinery, such as Road Roller, Motor Grader, Asphalt Paver, Cold Milling Machine
-- Concrete Machinery, such as Concrete Pump, and Concrete Mixer
-- Logistics Machinery, such as Telescopic Handler, and Forklift
- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Platform, and Fire Truck, Bitumen tanker
Our Advantage
- Professional sales team consisted of diligent, dynamic and innovative people with international version.
-- Excellent logistics services ensuring timely delivery of consignments all over the world through ocean, airline, road and railway.
-- Well coordinated and expertly managed operation system adapted.
-- Expert team of after-sales professionals assuring that all our products under excellent maintenance and performance.
Silon Industrial is distinguished by a highly collaborative culture which values the contribution of our diverse team both within the company and in the wider community. Our style is open, service focused, and friendly. We believe that our commitment to client service, commerciality, and teamwork provides benefits to our clients and enhances effective business relationships.
