Product Specifications
Product Description

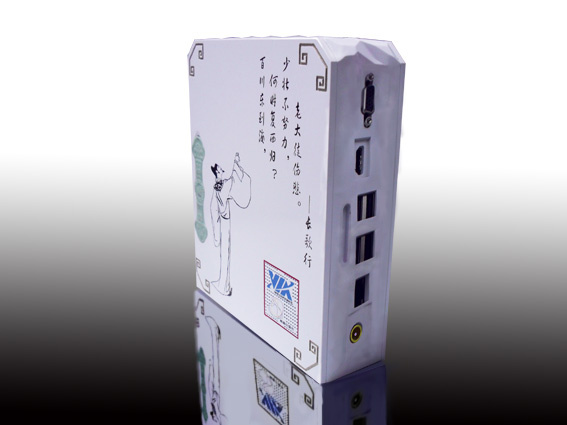

1. Save power: The output power of the new energy-conservation mini computer host is only 35W! Compare to the normal computer host, it save 80% of power rate.
2. Smart body: With the great support of VIA, we are using the most advanced integrate technology to let the computer's body reduce to 160*142*40mm.
3. Independent graphics card: Outfit with VIA S3435 card(Video memory: 128M-512M). The score of 3DMARK03 test is 5000-6000. It can broadcast the 3D movie and the 3D game affluently
4. Radiating: Adopt the double copper vessels radiating technology, make the mini PC more safer for long time using.
5. Chinese Style appearance: Also we can customize the appearance according the requirement of the different customers.
6. Optional anti-theft component: Make your mini PC more safer.
Technical description:
Motherboard style: X86
CPU style: VIA EDEN 1.6G, NANO 1.0_2.0G
Standard configuration: NANO 1.6G
Northbridge South bridge: VIA VX800
Front side bus frequency: 533/800MHz
RAM type: DDR2 667/800
RAM capacity: 512MB/1GB/2GB
Sound card: VIA 5.1independent audio, support dolby surround
HD capacity: 80GB/ 160GB/320GB
HD interface: ATA 133 or SATA II
Video card: VIA-independent graphics card;
Be provided with HDMI and VGA interfaces,
Support the newest DirectX10.1 Lsometric Tile Engine;
Support high-definition broadcasting.
Video memory: Independent graphics card memory: 128M-512M, standard configuration256M.
USB port: 5
COM port: 1
SYSTEM: Linux, windows CE, windows XP
NIC: VIA 10M/100M/1000M
WiFi: VIA support 802.11b/g, the maximum
Transmission speed is 54M (optional)
Burglarproof: (optional)
Power: 12V/5A (Intelligent Optimization)
Power consumption: 36W
Dimension: 16CM*14CM*3.5CM
VE CROWN UNITE ELECTRON TECHNOLOGY Co., Ltd(VCA) is a high-tech enterprise based on researching, developing, manufacturing and selling the mini computer host and intelligent appliance.
We established in 2007. During the two years, VCA make a full range of cooperation with VIA, which is the famous CUP maker in the world. The mini computer is our main project, it have the advantages of saving cost, environmental-protecting, secure and reliable, lightness and fineness.
Now VCA already have 30 researchers and 300 works, which make us more professional and effective. With the spirit of "sincerity, innovation, service and quality", we will provide the customer with excellent goods and best service.
All the VCA numbers are looking forward to built friendly business relationship with customers for long-term cooperation.
