Mini Electric Car with EEC Certificate
Product Specifications
| Prod Model: |
BIRO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacement: |
≤1000CC |
| Type: |
Sedan |
| Fuel: |
Electric |
| Body Type: |
Closed |
| Conditon: |
New |
Product Description

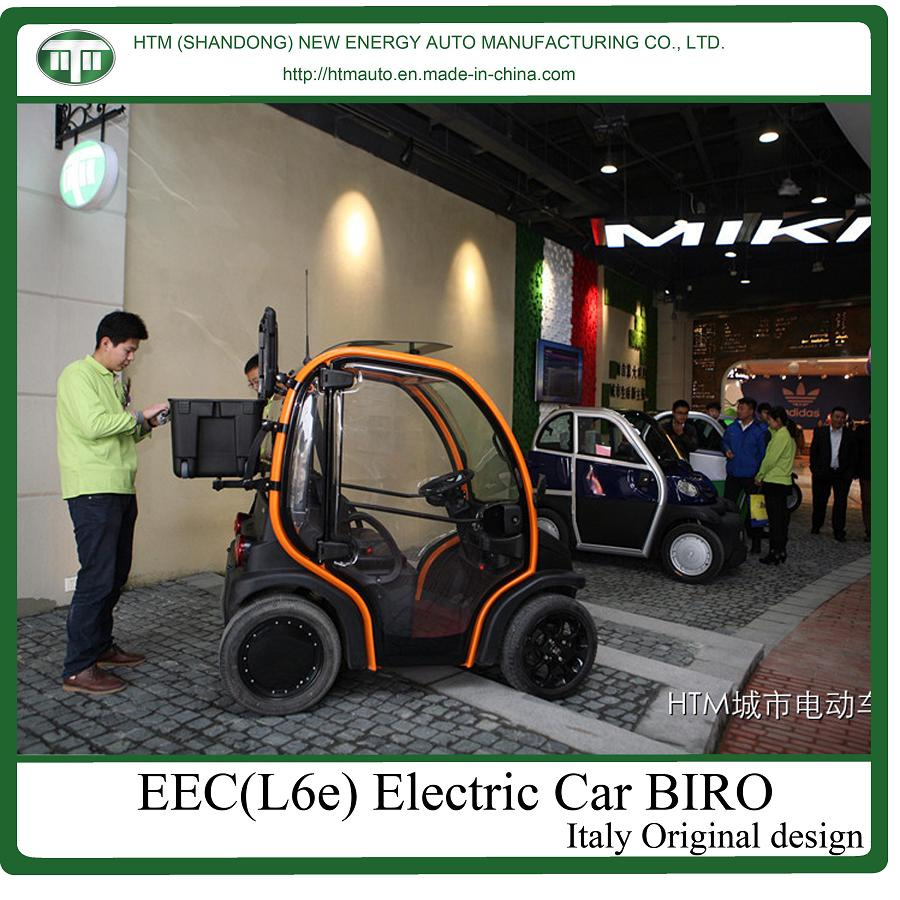

EEC(L6e) Electric Vehicle Biro
MOTOR BRUSHLESS HUB ENGINE
RATED POWER 4KW
MAX SPEED 45KM/H
BRAKE SYSTEM FRONT/REAR HYDRAULIC DISK BRAKES
NET WEIGHT 313KG
The first ASF electric urban car in China
The first Double Motor Drive electric urban car in China.
The vehicle is Italy's original design.
| DIMENSIONS AND WEIGHT | GENERAL CHARACTERISTICS |
| Length 1.740 mm | 3mm thickness steel safety structure |
| Width 1.030 mm | 4 hydraulic disc brakes |
| Height 1.565 mm | Mechanical hand brake |
| Pace 1.250 mm | 130/60 – 13″ tires |
| Width from wheel to wheel 860 mm | Windshield in green crystal with wipers |
| Weight without batteries 245 Kg | Sun roof in dark green tempered glass |
| Weight with batteries 370 Kg | Back window in dark green tempered glass that can be opened |
| ELECTRICAL CHARACTERISTICS | 3 capacious glove compartments: |
| 2 Brushless electric engines 48V | Front glove box: l 2.8 |
| Max power 4 KW | Rear upper glove box: l 41.5 |
| 220V battery charger | Rear lower glove box: l 41.8 |
| Recharge times 4-9h | Beeper for reverse gear |
| Braking energy recover | Safety handles |
| Energy range about 100km* | 12V power socket |
| Pb-Gel batteries (4×12 V 100 Ah) | PERFORMANCES |
| Power consumption with standard battery charger: about 850 W | Max speed for the law 45 Km/h |
| Boost (to enjoy more power when needed) |
| Acceleration (from 0 to 45 km/h): |
| With boost: 10,5 sec. |
| Without boost: 17,5 sec. |
| Slopes able to exceed: up to 20% |
| Sudden turn radius: |
| From the center of the outside wheel: 2800 mm radius |
| Minimum diameter of sudden turn between walls: 6 m |
HTM (Shandong) New Energy Auto Manufacturing Ltd is a joint venture of a HTM SRL. (Italy) company with international back ground of advanced electric vehicle design and manufacturing technology and a Chinese company with government back ground of strong financial capability. The company locates in Zhaoyuan city of Shandong province, .
The company was set up in 2012. Its main business is to produce various electric vehicles for city use. The technology and the design are from HTM (Italy) company, All the products are homologated as European standard L6e and L7e. The company is projected to manufacture 100, 000 cars per year in 3 factory buidings and enlarge to 200, 000 cars manufacturing capability within the next two year adding other 3 factory buildings. The total plant space will reach 200, 000 square meters.
HTM products provide the city centre an exellent solution of mobility to resolve the problem of air polution, noise, road efficiency and parking.
Italy HTM
Italian HTM company was founded in 1997. The company's main business is the development of a new generation of electric road vehicle, and began to develop and apply advanced motor and Controller. One of its primary founder, Mr. Alessandro pavoni is the pioneer in the industry. He began to study electric cars from 1978, and in 1986, he developed a manned digital power and control system for electric vehicle, he then developed the first electric bike and scooter electric three - wheeled prototype in 1992.
In Italy, HTM passed the authentication of the Italian Ministry of Transport, being eligible for the production of electric four - wheel vehicle business, the development of a light four - wheeled electric vehicle city7.0 passed 92/61/cee authentication, as a road motor, city 7.0 has become one of the Italian government procurement models, has this year for Italy, HTM already supplied over a thousand of for electric four - wheel postal motors for Italian Post Office this year.
HTM senior electronic engineer and mechanical engineer with more than 20 people, and in the Padova universitycooperation of electric vehicle technology. HTM company by virtue of the company's products and technology advantages to win the 1998 Lisbon Expo 800 electric cars exclusive supplier qualification. The 2000 Hannover World Expo, HTM successfully copied the experience, exclusive supply 1000 electric cars, of which 400 cars for the 4 round of the light electric vehicle. With years of research and development, HTM technology has mastered the advanced electric vehicle technology and design concept which adapt to the market, fashion shape, small size, high efficiency, simple and comfortable driving, charging convenience & reasonable prices enables a series of city electric car to become even more popular among consumers, HTM enjoys great public reputation and brand advantage in Europe.
