Product Specifications
| Prod Model: |
PE6637K-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
60va |
| Input Voltage: |
110V 220V 230V |
| Single Output Voltage: |
6V 7.5V 9V 12V 15V 18V 24V |
| Double Output Voltage: |
6V 7.5V 9V 12V 15V 18V 24V |
| No-Load Loss: |
No More Than 1.5W |
| Work Frequency: |
50~60Hz |
| Insulation Grade: |
Grade B |
| Dielectric Strength: |
4000V AC/1min |
| Color: |
Blue |
| Weight: |
1000g |
| Application: |
Audio |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
CE; RoHS |
| Brand: |
Yhdc |
Product Description

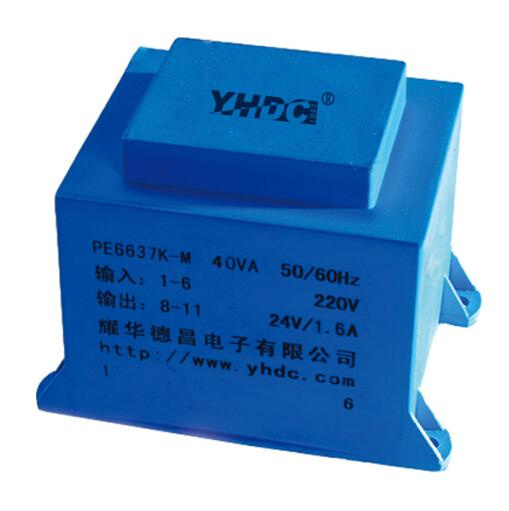

Model:PE6637K-M Power:60VA
Characteristics:
Vacuum epoxy resin embedding
Fire resistance property in accordance with UL94-VO
two mounting earholes at either side
Mounting height:63.5mm
Dielectric strength: 4000V/1min
Certification: CE ROHS Embedding mode: K type mounting
PE6637K-M is just one model, for other parameters and models, please feel free to contact me.
YaohuaDechang Electronic Co., Ltd. Was founded in 1992. Focus on the research and development, production and marketing of power transformer, current transformer, current sensor, SCR trigger transformer and etc. The products are applied in industry equipment, precision instruments, aviation, medical treatment, railway, electric power, wind power and industries which require high quality products.
In 1993 we begin adopting vacuum epoxy encapsulated technology. Our technical engineers lead a technical team with innovative spirit. By the abundant technical force, every year we developed many excellent performance products. These years, we always insist using high quality material produce the best preformance products. Our products can meet the requirements of work in bad environments and work long-term. That can not be damaged. High dielectric strength, low noise, low temperature rise, service life can be last for 20 years.
Up to now, we had provided hundreds of specific equipment for aerospace and aviation areas.
The high voltage silicon controlled trigger transformer (dielectic strength can up to 20kV) have been developed which had got patent in 2004.
Our factory covers over 12000 square meters, including 4 workshops, several full automatic product line, more than 100 sets automatic wire winding machine and sufficient test machinery. Two laboratoies are set for developing high performance product according to customers requirements. Special potting technology, the epoxy resin products been cast in vacuum, and curing in 110 degrees centigrade for 12 hours. For each of our product is after high temperature aging temper which own high quality. Our products have been CE approved, CQC and RoHS certified.
Till 2015, after more than 20 years accumulation and precipitation, we are the top in the same industry. We always insist the principle of " We only have one kind customer, satisfied customers". And keep in mind " Quality first, Customer first" to serve our customers with heart and soul. Make contributions to speed up the development f power industry.
