Product Specifications
| Prod Model: |
HTL65-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bucket Capacity: 0.23m³: |
with Color: Red or Yellow or as Your Request |
| Type: |
Wheel Excavator |
| Size: |
Small-Scale |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
| Drive Type: |
Hydraulic |
| Usage: |
General |
Product Description

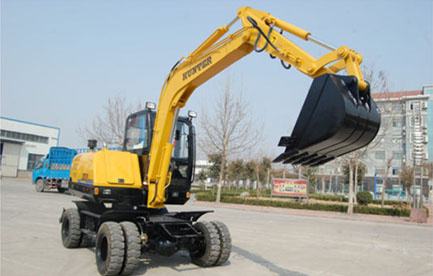

6 ton Hydraulic wheeled excavator with CE aprroved (HTL65-8)
Factory Export Directly.
Features:
1)Low noise, low fuel consumption and low emission.
2)Adopted world class Kawasaki hydraulic system, high efficiency and reliability.
3)Safe and comfortable driving cabin with air conditioner.
4)Hydraulic control system is used with multi-power modes to adapt to different operations.
5)Superior excavation performance, design of enhanced structural parts, uses high tensile steel plate
Below shows for:
1) On-site customer visit& test run
2) Factory Workshop
3) Shipments
4)We take part in exhibition.
5) Product details
Product Specifications |
| Model No. | Description | Unit | HTL65-8 |
| Main Dimensions | Shipping Length | mm | 6174 |
| Shipping Height | mm | 3009 |
| Overall Width | mm | 2085 |
| Tyre Type | mm | 7.50-16 |
| Radius, Swing Center to Rear End | mm | 1832 |
| Wheelbase | mm | 2170 |
| wheeltread | mm | 1570 |
| Steering Width | mm | 1778 |
| Performance Parameters | Engine Type |
| YC4F70Z-T21 |
| Power | kw/rpm | 50/2200 |
| Hydraulic System Pressure | MPa | 21 |
| Hydraulic System Flow | L/min | 55×2+39 |
| Bucket Volume | m³ | 0.23 |
| Bucket Digging Force | KN | 43 |
| Arm Digging Force | KN | 22 |
| Gradeability | (°) | 20 |
| Rotation Speed | rpm | 11 |
| Travel Speed | km/h | 18 |
| Approximate Weight | kg | 6560 |
| Working Scope | Max. Digging Height | mm | 5544 |
| Max. Dumping Height | mm | 3995 |
| Max. Digging Depth | mm | 3375 |
| Max. Digging Radius | mm | 6095 |
Buyer Reading:
1)Payment way : L/C, T/T
2)Delivery time: 5-30days after your deposit paid. It depends on your Quantity.
3)Shipping way: By sea, in 40HQ or Ro-Ro ships
Thanks for your reading.
More information contact us.
|
