Product Specifications
| Prod Model: |
K802 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Fanless Design |
| Brand: |
Pescomm |
| Model: |
K802 |
| Place Of Origin: |
China |
| Processor Brand: |
Intel Atom |
| Size: |
210 Mm (W) X 188 Mm (D) X 50mm (H) |
| Supporting System: |
Windows/Linux |
| Construction: |
Aluminum Chassis |
| Service: |
OEM, ODM |
| Power Requirements: |
12V/8V~28V |
| Memory Capacity: |
2GB |
| CPU: |
Intel Atom |
| HDD Capacity: |
320GB |
| GPU: |
Intel |
Product Description

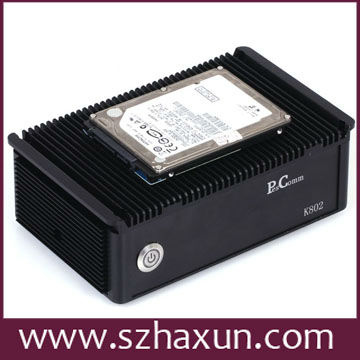

Mini Fanless Computer with N2800, Desktop Computer, Windows/Linux Support, 12V, Kiosk PC
Main Board "Intel® Atom™ N2800 Dual Core processor, 1.86GHz, 1M Cache
Integrated Intel GMA 3650"
Main Memory 1 X DDR3, support up to 2 GB DDR3 1333/800
Storage 1 X 2.5" SATA HDD drive bay
LAN Realtek RT8111E, 10/100/1000M, Support PXE, Wake on LAN
Audio Realtek ALC662
Watchdog Timer 255 levels, 0~255 sec
BIOS AMI 16MB DPI Flash ROM
Expansion "2 X Mini-PCIe socket onboard
Default: Support optional Wi-Fi module
Option: Support 3G module"
I/O Interface-Front Power on/ off switch
I/O Interface-Rear "4 X USB 2.0
2 X RJ45
1 X VGA
1 X HDMI
1 X Audio
2X COM
1X 12V DC IN
1X Antenna holes (Either optional Wi-Fi or Mobile wireless module)"
Power Requirements 12V DC IN
Dimensions 176 mm (W) X 110 mm (D) X 59mm (H)
Construction Aluminum Chassis
