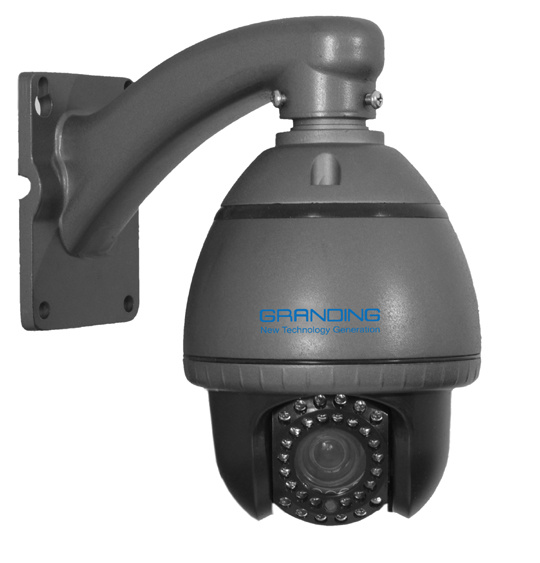

Mini IR PTZ Dome IP Camera with Waterproof (SD822)

Name: Mini IR PTZ Dome IP Camera with Waterproof (SD822)
Brand: China-Manufacturer-Directory.com
SKU: 745260895
Availability: InStock
Rating: 4.6 (28 reviews)

Supplier:	Granding Technology Co., Ltd.
Price:	US $ 325/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SD822
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor:	1/3" Super Had CCD
Zoom Range:	10-Multiple Optical Zoom, 10-Multiple Electronic
Optical Lens:	F1.8(W)-3.1(T); F=5.5-55mm
Infrared Projection:	25-30m
Primary Processor:	Hi3512
Video Frame Rate:	PAL:1-25 Fps; NTSC:1-30fps
Motion Detection:	Allow 4 Independent Detection Areas
Horizontal Rotation:	360 Degree Continuous Rotation
Vertical Rotation:	0-9 Degree, with Auto Flip
Certification:	RoHS
Effective Distance:	10-30m
Remote Control:	Without Remote Control
Type:	IP Camera
Sensor:	CCD
Style:	Pan/Tilt
Feature:	Auto BLC
Kind:	Autofocus Lens
Horizontal Resolution:	650tvl
Sensor Size:	1/3'' Sony Exview Had CCD
Technology:	Infrared and Pan/Tile/Zoom

Product Description

Mini IR PTZ Dome IP Camera with waterproof
Model: SD822

Please download catalog from this link: https://www.sendspace.com/file/lv4v5m

Features:

1. Support 360° Vertical endless rotation, no monitoring blind area

2. Infinitely variable speeds, zoom speed automatic matching technology

3. Support setting left and right limited position and speed when auto scanning

4. Support OSD menu as optional

5. Support WIFI optional

6. Six auto cruise tracks, with each one storing up to 16 presets

7. Provides the power-off memory function, which enables the camera to restore to the original working status after it is powered off and then restart, thereby improving system security and reliability.

8. The Web server embedded in the camera enables users to perform video monitoring on their PCs through various TCP/IP-based networks.

9. Support the browsing by 20 users simultaneously, 10 in primary code stream and 10 in secondary code stream.

10. Hi3512 high-performance multimedia processor, support H. 264 Main Profile video coding.
Hi3512, H. 264 Main Profile

Specification:

1/3" Super HAD CCD
High speed 360 degree continuous pan
650TVL high resolution
Super low illumination
Motion detection
10 X Optical / 10X Digital zoom
IR distance: 10-15m

Standard TF Card slot (supports max 32G)

Order Item:
SD822-B for Standard model
SD822-W with WiFi module

Camera Performance	Image Sensor	1/3" Super HAD CCD
	Zoom Range	10-multiple optical zoom, 10-multiple electronic zoom
	Minimum Illumination	Normal mode: 1 Lux; Night mode: 0.1Lux(IR off), 0Lux(IR on)
	Optical lens	F1.8(W)-3.1(T); f=5.5-55mm
	Signal-to-noise ratio	> =48db (AGC off, Weight on)
	Aperture	Automatic aperture, the electric mode is preferential
	Focus	Automatic focusing; the electronic mode is preferential
	Infrared projection	25-30m
Video	Primary Processor	Hi3512
	Operating System	Embedded Linux
	Video Compression Algorithm	H. 264 main profile level 3
	Audio Compression Algorithm	G. 726/G711
	Video Compression Code Rate	Primary Code stream: 32-512 Kbits/s adjustable Secondary Code stream: 32-256 Kbits/s adjustable
	Video Resolution	Primary Code stream: 704576, 352288, 176144(optional) Secondary Code stream: 352288, 176*144(optional)
	Video Frame Rate	PAL: 1-25 fps; NTSC: 1-30fps
Functional Interfaces	Motion Detection	Allow 4 independent detection areas
	Memory	Support TF card for video storage and image capture, 32G Maximum(optional)
	Network Interface	10 Base-T/100Base-TX Ethernet interface
	Network Interface	WiFi 802.11b/g wireless (optional)
	Supported Network Protocols	TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP and RTSP, etc.
PTZ	Horizontal Speed	0.5-180 degree/s
	Vertical Speed	0.5-180 degree/s
	Default Speed of Preset Position	150 degree/S
	Horizontal Rotation	360 degree continuous rotation
	Vertical Rotation	0-9 degree, with auto flip
	Preset Position	255 present positions and precision of preset positions is less than 0.1 degree
	Scan Mode	Three scan modes: automatic/random/preset position cruise path
	Preset Position Cruise	6 preset positions, with each one storing up to 16 presets
	Track Memory	2 Track memory
	RS-485	Pelco-D, Pelco-P
Working Environment	Power Supply	12V DC 1.5A POE: 802.3af POE standard (optional)
	Power Consumption	10W max
	Power Conditions	-10 to 55 degree, 10-85% RH
	Weight	Ceilling Mounting Type: N. W.: 1.5KG G. W.: 2.1KG Wall Mounting Type: N. W.: 1.8KG G. W.: 2.5KG
