Product Specifications
| Prod Model: |
HL-8110 H81 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
170mm*170mm |
| Packing Or: |
20PCS/Carton or 30PCS/Carton |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
16G |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| SATA Interface: |
SATA3.0 |
| Printed Circuit Board: |
Six Layer |
| Main Board Structure: |
Integrated |
| CPU Socket: |
PGA 989 |

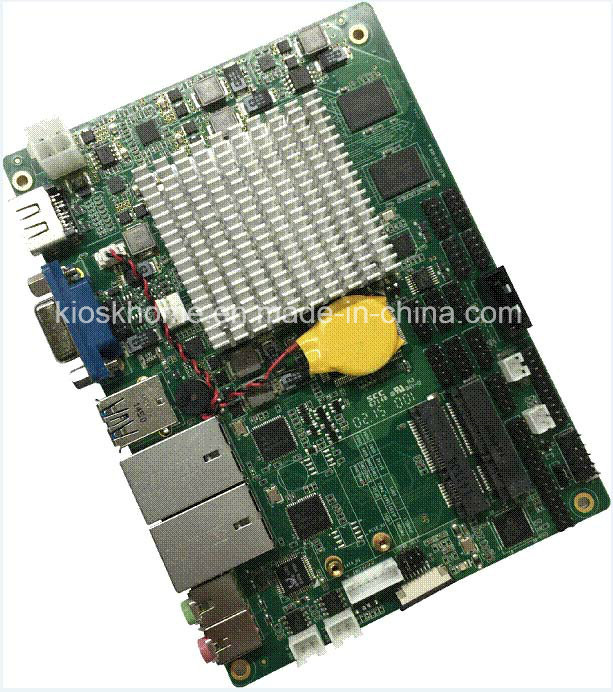

Product Description
Product Features:
1, support the 4th generation LGA1150 Intel Core Processors
2, using Intel H81 chipset
3, 10 RS232 serial ports, eight USB2.0, 2 two USB3.0
4, a MiniPCIe Interface
5, supports dual independent VGA display, an HDMI
6, supports two Intel I211 Gigabit Ethernet ports
Product Specifications:
| Processor | Support 4th generation LGA1150 Intel Core Processors |
| Chipset | Intel® H81 PCH |
| RAM | 2 * DDR3 SODIMM, maximum support 16GB |
| Serial ports | 10*RS232 |
| USB | 8 * USB2.0,2 a USB3.0, wherein the front six USB, pin 4 |
| Ethernet port | 2*Intel I211 Gigabit Ethernet port |
| Graphics chip | Intel HD Graphics(CPUIntegrated) |
Display Interface
| 1*VGA |
| 1*HDMI |
|
| 1*Mini -PCIe |
Expansion Bus
| / |
| 3*SATA Interface;1*MSATA Interface |
| Storage Configuration | 4 USB 2.0;; 2 USB3.0; front two Ethernet ports 1 audio; 1 PS / 2 KB / MS interfaces; two VGA; 1 x HDMI |
| Front I / O | -20ºC~65ºC |
| Working temperature | ATX |
| Power mode | Mini-Itx 170mm*170mm |
| Size | 170mm*170mm |
