Product Specifications
| Prod Model: |
FL920F |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Engine: |
Luotuo Lr4b3-24, 60kw |
| Bucket: |
1.0m3 |
| Operation Weight: |
5600kgs |
| Dump Height: |
2470mm |
| Dimension(Lxwxh): |
5540x2060x2870mm |
| Walking Mode: |
Wheeled |
| Type: |
Large Loader |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

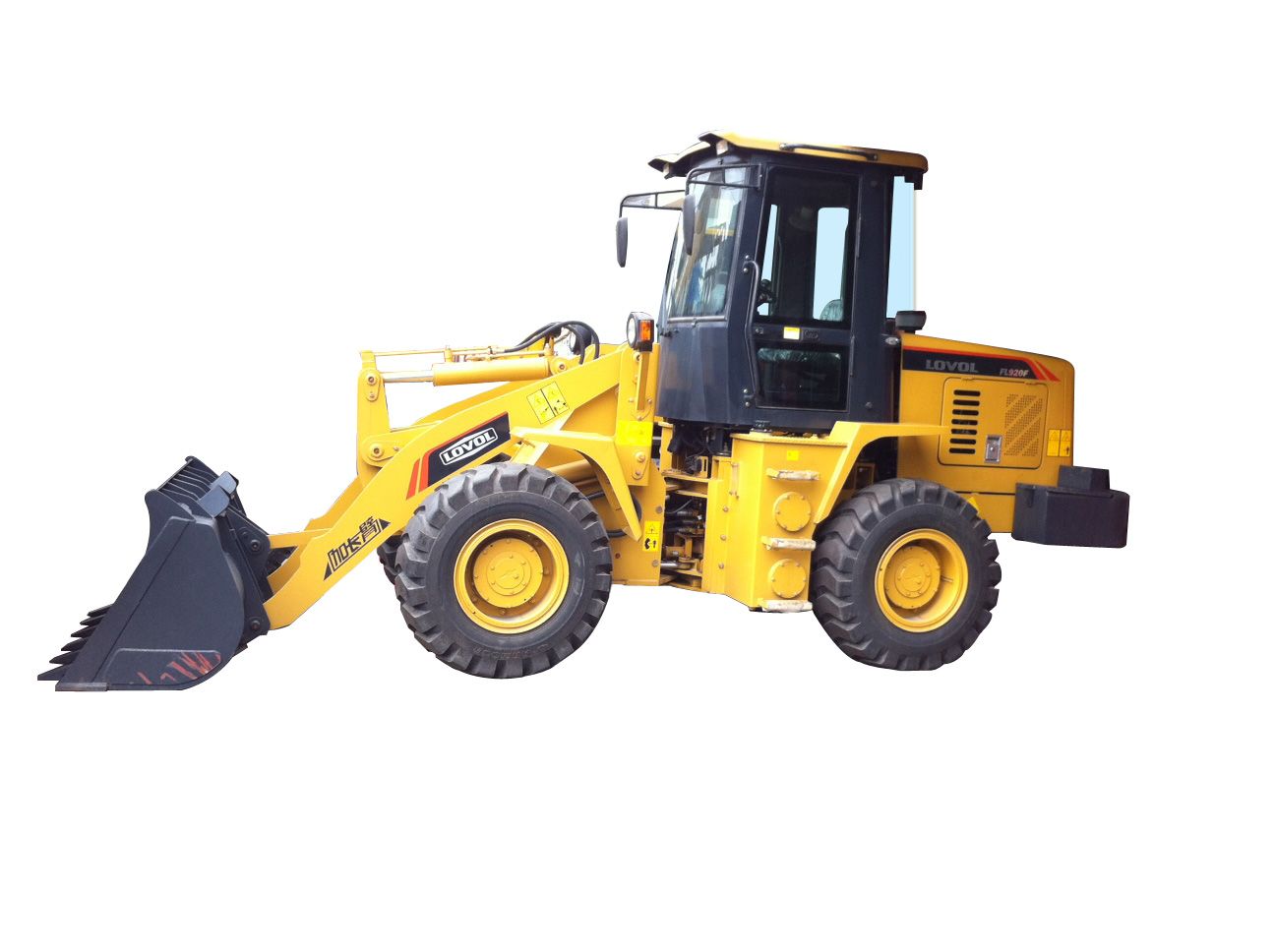

Mini Loader FL920F
Main Features
1. Power is supplied by Luotuo LR4105G Engine with stable quality and strong dynamic.
2. The best components and parts in the field are equipped: Shantui transmission and Shantui torque converter; Feicheng axle(loader drive axle) is also equipped.
3. The hinge joint of the front and back frames is long in span and strong in rigidity.
4. The transmission shaft is over the lower hinge joint that it can be effectively protected.
5. The dual clutch transmission is in the split style for easy maintenance.
6. Out leading device for the nozzle is equipped for easy oiling and concentrated grease fueling.
7. The bucket is to be laid flat automatically to relieve the fatigue of the driver.
8. Appearance of European style and glass side doors of the cab contribute to a wide view.
9. The hydraulic clipper disk braking is safe and reliable with large braking torque.
10. The single pump hydraulic steering system with the priority of load sensing serves for portable and flexible operation.
11. The central articulated frame has a short turning radius and high efficiency; The tracks of front and rare wheels are in conformity when steering with less energy consumption, providing protection to the transmission shaft and wheels.
12. Simple shed cab can be equipped. The machine can be used for borehole operation due to its low height.
