Product Specifications
| Prod Model: |
DW3030 Mini |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
Can Be Customized |
| Max.Speed: |
4200mm/Min |
| Working Speed: |
0 - 3000mm/Min |
| Mechanical Precision: |
0.01mm |
| Software: |
Type 3 Software, Artcut Software, Artcam Software |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description
This mini woodworking machinery, adopt mach3 and mini design, can be used for all kinds of wooden letters, key chains and other metal and nonmetal arts and crafts works, with its mini design, this machine is popular all over the world.

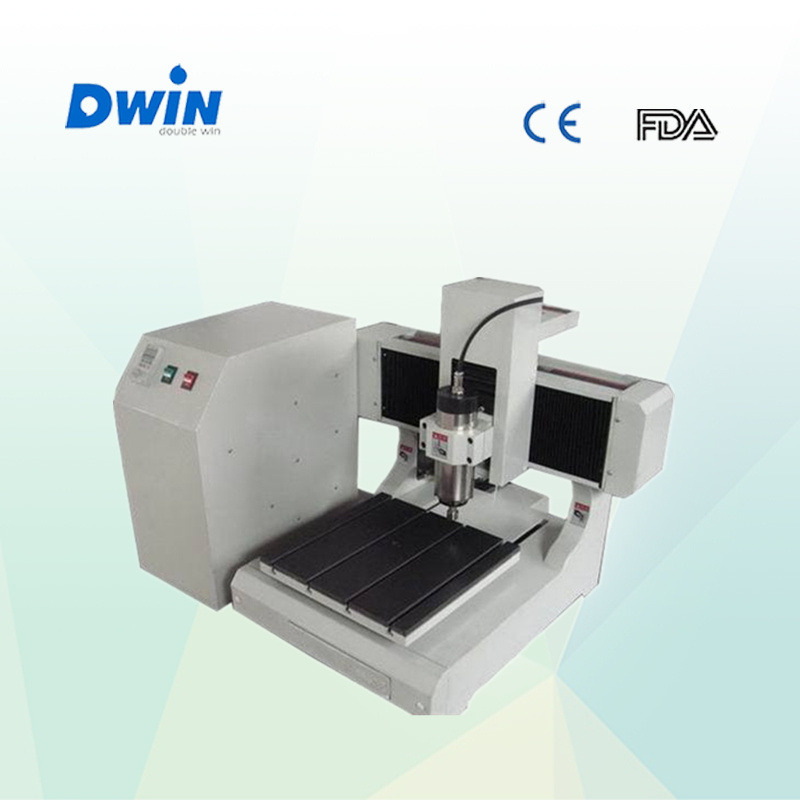

Mini Mach3 CNC Woodworking Machinery for Design
Features:
1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.Mach 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)
Application of the machine:
1.Wooden areas:mainly used in redwood classical and antique furnitures, wood carving,gifts wooden box,redwood jewelry boxes,ink-stone cutting, decorative products sculpture,fine jewelry carving.
2. models:company plate, signs, building models,emblem,badge, display panels, fair signs, building numbers, signs of decoration, furniture and other decoration.
3.Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relie
Technical parameters:
| Machine body: | DW3030 Whole cast iron |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4200mm/min |
| Working speed: | 0 - 3000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24000RPM |
| Blade diameter: | 1 - 6m |
| Control system: | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
