Product Specifications
| Prod Model: |
JFTC2700C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Multi-Case: |
Optional |
| Max. CPUs: |
1 |
| CPU Type: |
PC Share/Terminal |
| Supporting Memory Capacity: |
≤8GB |
Product Description
Thin Client with 2.13 GHz Intel Atom processor D2700, HD Mini Computer with standard 8 GBSSD (support up to 32GB and 2.5 inch SATA HDD )
Features:
1. Thin client can be used independently as a stand-alone;
2. Feature on-demand customization,
3. Activated interface can customize OEM information,
4. Optional protection system to prevent the virus from entering systems, reduce maintenance;
5. Can connect Windows 2000/XP/Vista/Windodws 7/Windows 2008;
6. Simulation support for multi-standard terminals;
7. Support for local printers, IC card reader, a modem, touch screen;
8. Modem support the use of dial-up remote server log;
9. Support the full 16-bit stereo player;
10. Flexibility choose VESA standard monitor from any manufacturers, support 24-bit true color display mode;
11. IE6.0/7.0 built-in browser, easily support the local B / S structure of the application system;
12. Can built in Media Player 9.0, and support for streaming video;
13. Windows Embedded Standard 7 operating system, integrating RDP and ICA agreement;
14. Field of applications.
15. Multi-case (optional).
|

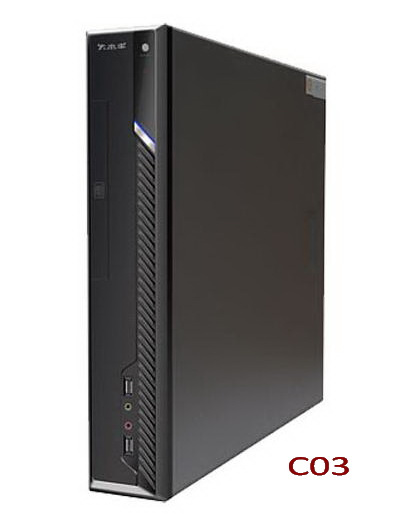

Case |
C03 (optional) |
|
Dimension |
305x245x66mm(L*H*W) |
|
Packaging dimension: |
360*335*120mm, 4 to one export carton |
|
Weight |
3Kg (Reference) |
|
Power Consumption |
20W |
|
Onboard CPU |
Intel® Atom™ processor D2700(dual-core / 2.13 GHz /
Intel® Hyper-Threading Technology3 / 512 KB x 2 L2 cache) |
|
Memory |
• 2GDDR3 RAM SO-DIMMs
• Single-channel DDR 3 with two connectors for 1066 / 800 MHz memory support (4 GB max) |
|
Chipset |
Intel® NM10 Express Chipset |
|
Hard Disk |
Standard 8 GBSSD (support up to 32GB and 2.5 inch SATA HDD ) |
|
Onboard VGA |
Intel® Graphics Media Accelerator 3650 |
|
Onboard LAN |
Intel® 82574L 10/100/1000 Mb/s Ethernet Controller |
|
Audio Solution |
Six-channel Intel® High Definition Audio |
|
I/O Controller |
• Two SATA ports
• One PCI port
• Two DDR3 SO-DIMM
• Four USB 2.0 external ports
• One PCI Express* Mini Card connector |
|
Front-Panel Connectors |
• Reset, power on/off
• HD LED, Power LEDs
• USB 2.0 headers
• Audio header |
|
Back-Panel Connectors |
• Four USB 2.0 ports
• One RJ-45 LAN port
• Three Audio header
• One HDMIport
• One DVI-D port |
|
Operating System |
Support Windows 7/Windows Embedded Standard 7 |
