Supplier: | Shenzhen Realan Computer Products Co., Ltd. |
---|---|
Price: | Negotiable/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,EXW |
![]() |

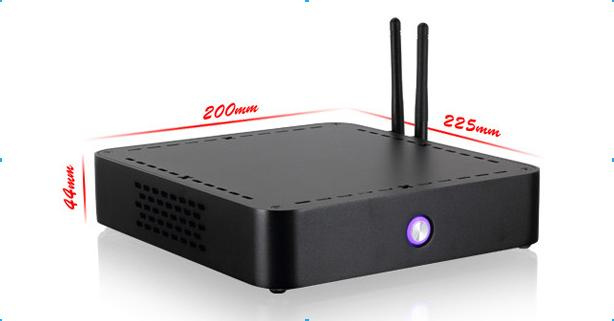

Prod Model: | LR-E450Q |
---|
Type | mini ITX (17*17cm) |
CPU | AMD T56N(1.65G,PBS:1600Mhz ;Level2 Cache,1M;TDP,13W |
Chipset | A55E |
Graphic | AMD HD6320 |
Memory | 1*SO-DIMM DDR3 1333Mhz, up to 8 GB |
OS | Win XP,Win 2000,Win 7,Win 8, Linux |
Slots | 1*SIM ;2*mini PCI-E |
HDD/ODD port | 2*SATA |
Audio | ALC662 2/4/5.1(channel) output |
LAN | 1* Realtek 8111E 10/100/100M Lan Controller |
Front I/O |
(1) 2 sets of USB pin array,avialble for 4*2.0USB; (2) 2 fan interfaces (for CPU fan and system fan); (3) 1* Audio pin array; (4) 4*COM pin array; (5) 1* 12 pin VGA array; (6) 1 set of 7 pin PS2; (7) 1*LVDS pin array (optional); (8) 1*HDMI pin array (optional) |
Rear I/O |
(1) 4*USB2.0; (2) 1*VGA; (3) 1*DDMI; (4) 1*LAN interface; (5) 1* set of Audio; (6) 1*12V DC input |
System monitoring and management | (1) waken cyber; (2) PSU management; (3) temperature and voltage management; (4) monitor the speed of fan |
Available temprature | 0 to 50 degrees centigrade |
Available humidity | 0% to 95% (relative, without condensation) |
