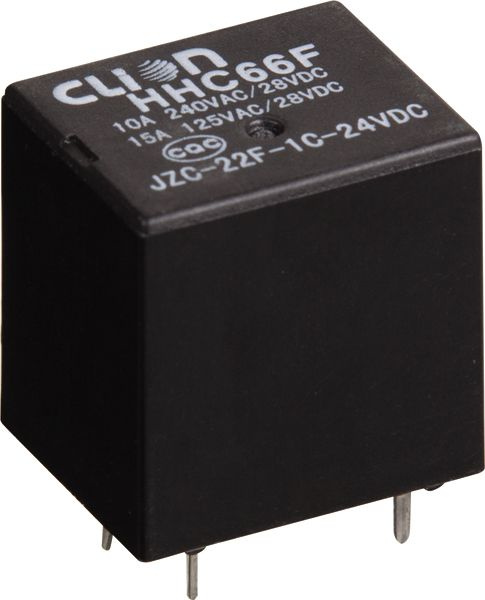

Mini PCB Relay Jzc-22f
Supplier: |
Clion Electric Co., Ltd |
Price: |
Negotiable/Piece |
Min Order: |
1000/Piece |
Quantity:: |
|
Trade Terms: |
FOB,CFR,CIF |
|
Product Specifications
Prod Model: |
HHC66F(JZC-22F) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Contact Form: |
1no+1nc(Spdt) |
Rated Load: |
15A |
Max. Switching Voltage: |
240VAC/28VDC |
Contact Material: |
Silver Alloy |
Coil Voltage: |
DC3-48V |
Product Description
Model: HHC66F(JZC-22F)
Dimension (mm): 20.3×16.6×20.4
Contact Contact form:1A,1B,1C
Contact Rated load:10A,15A 240VAC/28VDC
Contact Material:Silver alloy
Pick-up voltage (23ºC) DC:≤75%×Rated voltage
Pick-up voltage (23ºC) AC:-
Release voltage (23ºC) DC:≥10%×Rated voltage
Release voltage (23ºC) AC:-
Coil voltage DC:DC3V-48V
Coil voltage AC:-
Coil power: 0.36W
Operate / Release time: ≤10ms / ≤5ms
Electrical life: ≥100000 times
Xinling Electric was established in 1990 and with more than 1000 workers, has over 9 subsidiaries companies and 3 famous brand Clin, Clion and NNC.
The products range includes Mini PCB relay, General purpose relay, Power relay, Solid state relay, Power semiconductor module, Relay switch, Radiator, Proximity sensor, Capacitive sensor, Hall sensor, Photoelectric sensor, Temperature sensor, Limit switch, Microswitch, Push botton Switch, Foot switch, Signal light, Warning light, Temperature and Humidity controller, Timer, Counter, Switching power supply, Mini circuit breaker, Moulded case circuit breaker, Surge protector, Pneumatic, etc. The products are widely used in the areas as industrial control, mechanical equipment, power system and public utilities, etc. We have passed the ISO9001: 2008 Quality Management system certification, the products are approved by CCC, CQC, UL, CE, TUV and RoHS certificates. Because of the good quality, Xinling brand was recognized as China well-known trademark in 2007. We focus on products R&D, have a number of patented products.
After years efforts, the products of Xinling hold a very big market share in China and this become more and more, the relays with CLION brand are also sold well in the overseas market. We will keep on focusing on the product quality and customer service, work hard to be the faithworthy partner of you.
We sincerely invite you to visit us and have a further discussion, we always wish to establish a long-term and win-win business relationship with you.
XINLING ELECTRIC, NOT THE BEST, BUT THE BETTER!
