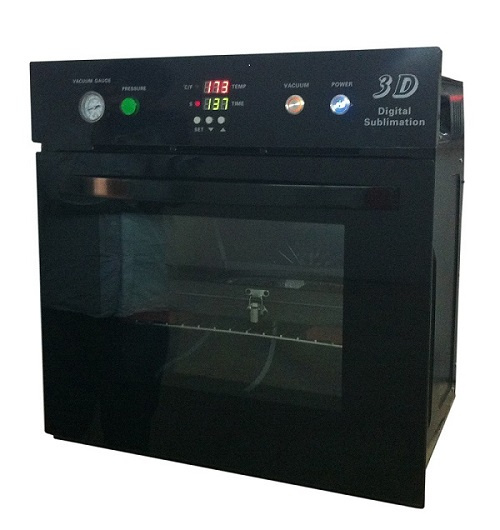

Product Specifications
| Prod Model: |
INV-3D01 |
| Markets: |
North America,South America,Southeast Asia,Western Europe |
| Model: |
Inv-3D01 |
| Working Size: |
46X44X34cm |
| Voltage & Frequency: |
110V/60Hz&220V/50Hz |
| Power: |
2100W |
| Vacuum Pump: |
1 |
| Vacuum Air Flow: |
33L/Min |
| Fan: |
1 |
| Heating Way: |
up & Down + Hot Air Circulation |
| Type: |
Ink Jet |
| Plate: |
Gravure Printing |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Speed: |
7.5CPI |
| Structure: |
3D Vacuum Oven |
Product Description
Product Description:
| Model | INV-3D01 |
| Voltage & frequency | 110V/60Hz&220V/50Hz |
| Power | 2100W |
| Vacuum Pump | one |
| Vacuum air flow | 33L/min |
| Fan | one |
| heating tube | U style stainless steel |
| heating way | up & down + hot air circulation |
| heating-dissipating way | fan delay |
| Inside surface coating | Teflon |
| Glass door | double insulation |
| Temperature range | 0-250 degree |
| Time range | 0-999 seconds |
| Gross Weight | 45KG |
| Color | Multi-color for choose |
| working size | 46*44*34cm |
| outside size | 60*59*55cm |
| Packing size | 70*70*80cm |
| Packing way | thicken carton box (2 cm) with pallet |
| Warranty | one year |
Features:
1.printing objects: adopt heat roller theory with vacuum tight absoption forming,which can heat transfer forming at one time for three-dimentional surface products, high steability, low defective rate.
2. printing features: three-dimentional products full color transfer printing machine, completely coverd design, which can cover full surface of the objects, using PVC scalable sublimation membrane, could cover corner,circular and angle,the printing result without crack and wrinkle but smooth on surface.
3. operation control: human-machine operation control, straightforward, easy learn and operation.
4. electrical control: adopt full imported photo electricity position sensor, operation stable performance is stable. heating temperature & time adopt high precision digital display
5. machine adjustable: directly input the value, easy adjust and straigtforward.
6. vacuum control: adopt imported vacuum pump,run negative pressure, fast reactivily, low fault rate & noise, long life time.
7. working effeciency: high working effeciency and could large quantity printing.
Additional info:
1. Large capacity two working layers, at most transfer printing 24 pieces of 11oz mugs at one time or 12 to 18 pieces of phone cases
2. The pattern is clarity: due to the up and down tube can heat together, combined with 3D hot air circulation, the heat transfer printing is uniform and the temperature is accurate.
3. Machine with safe, durable, quantity of heat distribute uniformity performance.
4. Heat indicating light turns off once set temperature is reached.
5. Eco-friendly and energy save: double layers +cotton insulation +double layer glass door heat insulation, and the heat loss at least, the outside body temperature is low, protect your hands from the high temperature.
6. The Fan delay heat dissipation, after closing switch power, the Fan delay and start about 90s, then the dissipate heat of the engine body, protect the engine body and electrical system, so the transfer machine will be more durable.
Application
For mugs, phone case, ceramic tile, lithograph, crystal, jewelry box, mouse pad, glass, round objects, iron product DIY artwork and so on
Other Information
INV-3D01 Video Link: http://v.youku.com/v_show/id_XNzg0NTc4NDc2.html
Dongguan INV Sublimation Machines Co., Ltd / INV Sublimation Machines (HK) Co., Ltd, in short of INV as below, is a modern company who integrated of sublimation machinery innovation, manufacturing, and sales, who locate in China famous hardware, machinery and mold town- Chang'an town, Dongguan city, where is west to Shenzhen, north to pearl river, east to Humen port, and South to Guangzhou, the transportation is very developed and convenient.
INV specialized in producing 3D vacuum sublimation machine ( oven ), large format sublimation heat press machine, roll to roll sublimation machine, pneumatic heat press machine, manual heat press machine, mug heat press machine, cap heat press machine, etc series products, innovate & manufacturing more than 30 machines, those which sorts & functions are complete, widely apply to fabric & cloth products, metal, board, glass, ceramic, etc surface heat transfer printing or heat treatment, involve to garment, advertising, gift artware made and DIY individuality printing etc industry & field. INV are always popular with good quality, substantial price & hospitable service in sublimation industry and customer. INV keep insisting on "quality is the only vitality of enterprise" management idea and "customer is forever our food & cloth parents " service attitude, that our products are widely sold to U. S. A, Germany, Switzerland, Spain, Sweden, Holland, Mexico, Colombia, Brazil, Peru, Korean, Pakistan, Thailand, India, Philippines, etc more than 30 countries and district in the world.
INV will continue based on current machines in the future, devote ourselves to R&D much more beautiful, simple operation & multi function sublimation machines, step by step apply to other industry & field, such as leather, special glass, wood veneer etc special material, and ultimately come true no figure, no industry restrict in the sublimation industry.
Idea leads New Victory, INV all members are forwarding to sincerely cooperate with you, fly the dream together, step to one by one new victory.
