Product Specifications
| Prod Model: |
EDN-360mini01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| HDMI Format: |
720P |
| Sensor Size: |
1/3 inch |
| Type: |
IP Camera |
| Sensor: |
CMOS |
| Style: |
Mini Camera |
| Feature: |
High Definition |
| Technology: |
Wireless |
| Kind: |
Manual Focus Lens |
Product Description

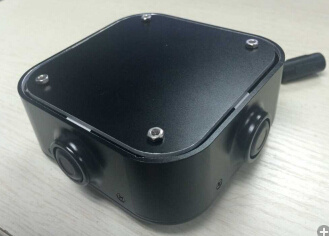

Shenzhen Rui Han Technology CO., Ltd is innovating the Mini Real-time 360 Degree Panoramic Video can generate 360-degree panoramic video in real-time. It is a highly integrated video system including the four-channel video capture, image correction, video stitching, compression and ethernet transmission. Benefit from FPGA combined ARM architecture it has small size, high processing speed, large amount of data throughput and low latency. It's able to process the 3200*600@30fps panoramic video with the system delay less than 50 ms. The panorama video are compressed by H.264 protocol and output through standard 100M ethernet.
Features:
Output 360-degree panoramic video directly
2.2mm lens with higher resolution than fish-eye lens
4 OV2643 CMOS image sensors
POE interfaces, easy to plug in
Made of aluminum, accurate factory calibration
H.264 encoding, low bit rate and high quality
FPGA + ARM architecture
Low latency
Ethernet interface,dedicated player
Video player:
Real-time playback,storage
360-degree panoramic view
Simply set up,easy to use
Playback frame rate up to 3200x600@30
Windows/IOS support
Welcome to cooperate !
Amy
EDN Vision is a high-tech enterprise specialized in providing complete solution,
Board card customization and system integration products import.
Especially good at big data processing and storage, dedicated
Visual processing circuit and system design. Our one-station service can help customers to shorten the development
Cycle and occupy the market quickly.
Recent years, We are focus on innovating 360° Real-time Panoramic Video System, Stereo Vision System,
Which are using on UAV, Drones.
EDN Vision is a global leader in the design and manufacturing of innovative, high-performance digital cameras for industrial, scientific, medical, traffic, and security applications. We offer FPGA design service, HOG IP, SIFT IP, H. 264IP, JPEG, JPEG 2000 IP, ISP ect. PCI/ PCIE, SATAII/ SATAIII, AES, DES/ 3DES, RSA, SM4, FPGA (XC6SL X 45), PCI, PCI-Ex1, PCI -Ex8, SATA, USB, FPGA (XC6SLX16), USB 2.0 port, JTAG port, FPGA ( XC6SLX150), HDMI display module: Silicon Image Sil9334CTU etc
Our technology team can make any of your image into reality. Tell us your thinking or design, we response to make your design to be reality. We also have a factory which more than 3000 square meters and offer OEM produce on your products.
