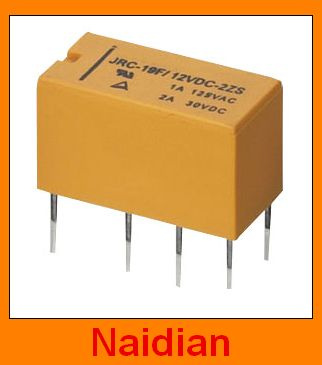

Mini Relay-Telecom Relay-PCB Relay (JRC-19F)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
JRC-19F(4078) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Mini Relay-Telecom Relay-PCB Relay(JRC-19F)
Features
1. Extremely low cost.
2. SPDT configuration.
3. Standard PC layout.
4. Sealed version avaible.
Outline Dimensions And Wiring Diagram
Ordering information
|
Mark demonstration |
JRC-21F/12VDC-1ZS |
|
Type |
JRC-21F |
|
Coil voltage |
1.5 3 5 6 9 12 24VDC |
|
Contact Arrangement |
1Z: SPDT |
|
Termination |
NO:PCB , 3:Model( Suitable for patch installation ) |
|
Coil power |
NO L: Standard(0.2W) , N : (0.36W) , B: 0.45W |
Contact Data
|
Contact Arrangement |
1Z |
|
Initial Contact Resistance |
100mΩ (1A 24VDC) |
|
Contact Material |
AgNi |
|
Contact Rating(Res.Load) |
H:3A120VAC/30VDC
Z:2A 220VAC/30VDC 3A 120VDC |
|
Max.switching voltage |
220VAC / 125VDC |
|
Max.switching curreng |
3A |
|
Max.switching power |
240VA / 30W |
|
Mechanical life |
1×107 times |
Characteristics
|
Initial Insulation Resistance |
1000MΩ 500VDC |
|
Dielectric Strength |
Between coil and Contacts |
1000VAC 1minute |
|
Between open contacts |
500VAC 1minute |
|
Operate time(at nomi.Volt) |
Max:10ms |
|
Release time(at nomi.Volt) |
Max:5ms |
|
Temperature rise |
H:50°C N.B:60°C |
|
Shock Resistance |
stability |
98m/s2(10g) |
|
intensity |
980m/s2(100g) |
|
Vibration Resistance |
1.5mm 10~55Hz |
|
Humidity |
35%~85% |
|
Temperature |
-25°C~+55°C |
|
Termination |
PCB |
|
Unit weigth |
5g |
|
Construction |
Sealed IP67 And Guards against the solder |
Coil Data
|
Nominal Voltage VDC |
Action voltageVDC |
Drop-out Voltage VDC |
Max voltageVDC(25°C) |
Coil Resistance Ω |
|
L |
N |
B |
|
3 |
2.3 |
0.3 |
3.9 |
45 |
25 |
20 |
|
5 |
3.8 |
0.5 |
6.5 |
120 |
70 |
56 |
|
6 |
4.5 |
0.6 |
7.8 |
180 |
100 |
80 |
|
9 |
6.8 |
0.9 |
11.7 |
400 |
220 |
180 |
|
12 |
9.0 |
1.2 |
15.6 |
700 |
400 |
320 |
|
24 |
18.0 |
2.4 |
31.2 |
2800 |
1600 |
1280 |
