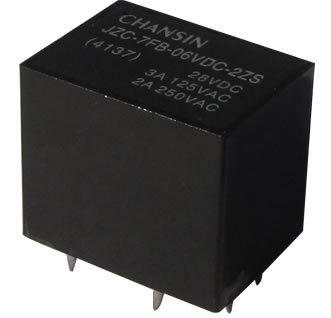

Product Specifications
| Prod Model: |
YY02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Contact data
Contact Arrangement
2Z (2C) 2H (2A)
Initial Contact Resistance
100mΩ (1A 6VDC)
Contact Material
Agcdo (Silver Alloy )
Contact Rating(Res. Load)
3A 250VAC 3A 30VDC
Max. Switching curreng
5A
Max. Switching power
750VA / 90 W
Max. Switching voltage
250VAC / 30VDC
Mechanical life
1× 106 times
Electrical life
1× 105 times
Characteristics
Initial Insulation Resistance
100MΩ , 500VDC
Dielectric Strength
Between coil and Contacts1000VAC 1 min.
Between open contacts750VAC 1 min.
Electronic contact group1000VAC 1 min.
Operate time(at nomi. Volt)
Max: 15ms
Release time(at nomi. Volt)
Max: 10ms
Temperature rise(at nomi. Volt)
Max 55
Temperature -40 ~ +70
Shock Resistance
Stability100m/s2
Intensity1000m/s2
Vibration Resistance
10~55Hz
Humidity
5%~85%
Termination
PCB
Unit weigth
About 14.0 g
Construction
Sealed IP67
Coil data
Coil power
0.6 W
Coil Specification table
Nominal Voltage VDCAction voltageVDCDrop-out Voltage VDCMax voltageVDC(20)Coil Resistance Ω
53.750.506.547± 10%
64.500.607.860± 10%
96.750.9011.7135± 10%
129.001.2015.6240± 10%
1813.51.8023.4540± 10%
2418.02.4031.2960± 10%
4836.04.8062.43840 ± 10%
Ordering information
Mark demonstrationJZC-7FB / 12V -2ZS
TypeJZC-7FB
Coil voltage3.5.6. 9. 12.18.24.48 VDC
Contact Arrangement2H: Two groups Normal Open 2Z: Two groups Transformation
ConstructionS: Sealed IP67
Contact MaterialT: AgSnO2 NO: AgCdO
