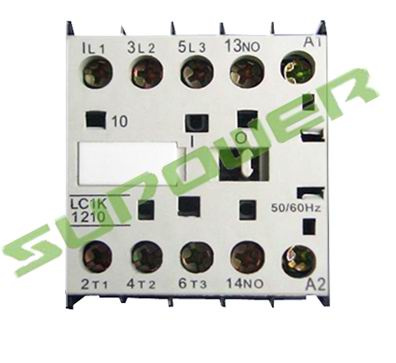

AC Contactor LC1-K
For motor control, from 6 to 12A(AC-3)
For the control of distribution circuits, up to 20A(AC-1)
Control circuit: A. C or D. C.
And it is suitable for using in LC1-K /LC2-K /LP1-K /LP2-K.
|
specifications\Type |
LC1-K06 |
LC1-K09 |
LC1-K12 |
|
Use group under AC-3 |
3 |
9 |
12 |
|
Rated working current(Ie)A |
5 |
7.5 |
10 |
|
Conventional thermal current(Ith)A |
16 |
20 |
20 |
|
Rated working voltage(Ue)V |
380 660 |
|
Rated insullation voltage(Ui)V |
690 |
|
AC-3(6Ie Ie) |
Electrical life(times) |
0.5× 106 |
|
|
Operation frequency h-1 |
1200 |
|
AC-4(6Ie Ie) |
Electrical life(times) |
10× 104 |
|
|
Operation frequency h-1 |
300 |
|
Mecnical life |
3× 106 |
|
Auxiliary contact |
Conventional thermal current |
0.5× 106 |
|
|
Electrical life (times) |
AC-15(360VA) |
|
|
|
|
DC-13(33W) |
|
|
Coil specifications |
Rated control voltage(Us) |
AC: 12, 24, 45, 110, 220, 380 DC: 12, 24, 45, 110, 220 |
|
|
Pick-up voltage |
AC: 0.85~1.1Us DC: 0.85~1.1Us |
|
|
Releasing voltage |
AC: 0.1~0.75Us DC: 0.2~0.75Us |
|
|
Coil power VA |
Pick-up |
40 |
|
|
|
Retain |
4 |
|
|
Consumption |
1.2W |
|
|
Pick-up time |
6~18ms |
|
|
Releasing time |
5~23ms |
|
|
Power factor |
Making 0.8 Breaking 0.3 |
