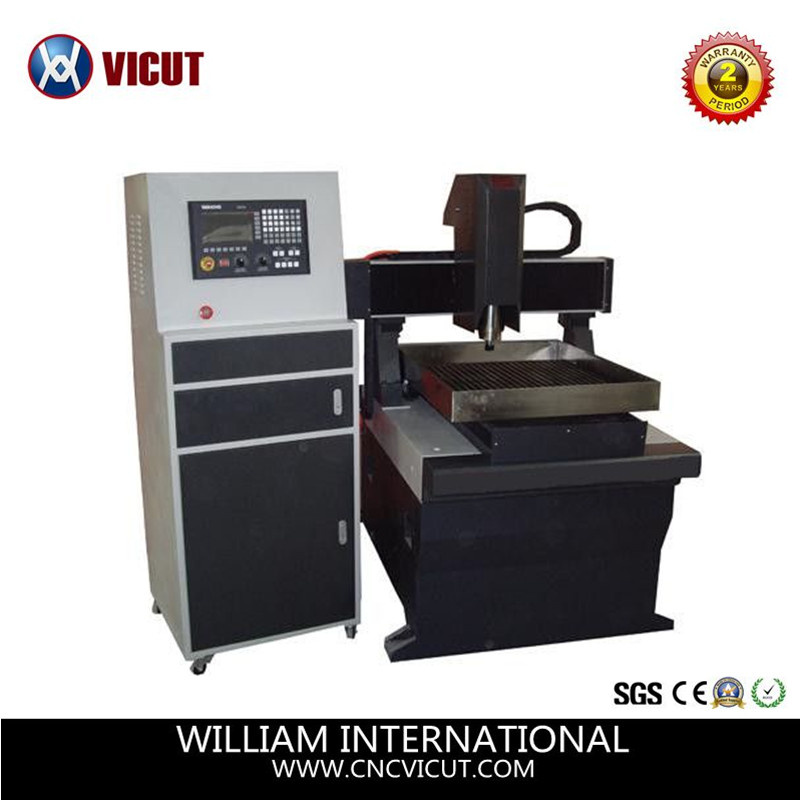

Mini Size CNC cutting Machinery
Model:VCT-5060
Features:
1.Integral cast-iron frame which made by mold.
2.Rolling ball screw from Germany, P5 grade linear rail.
3.Configured 1.5KW water cooling spindle
4.Strong constructions, easy operation, reliable performance.
5.Customized:Design, size, color.OEM Service is available.
Applications:
Special for carving in soft metal, jade, and marble with high accuracy, used for advertising, stamps processing, handcrafts and specializing accurate instrument industries.
Mini Size CNC Machinery Technical Parameters:
Model | VCT-5060 |
|
| Working Size | 500x 600 x 60MM (0.98' x 0.82' x0.2') |
| Spindle Power | 1.5KW water cooling spindle |
| Spindle Speed | 6000-24000RPM |
| Tool Diameter | ¢3.175 ,¢4,¢6(optional) |
| Format Code | HPGL\G-Code |
| Mechanical Accuracy | ± 0.05mm |
| Crossbeam moving |
| Net Weight | 150KG |
| Packing Size | 600 x 700 x 900mm ( 0.38CBM ) |
|
| controller | NC studio |
|
Details:
Cast Iron for whole machine body, High precision mold machine, 1.5KW water cooling Spindle.
Optional:
1.Water Cooling System:With a water tank and water cooling sprayer on the spindle motor, it can work for metal marking and stone engraving, such as copper/brass, aluminum, silver, gold, etc.It puts coolant or water onto the tool and machining surface;The tray with filter will collect and send the liquid to pump for the next circle.
2.Circular Chuck:This item will be needed when you want to engrave or marking on round shape pieces, such as copper stamps, it can fix the working parts tightly during processing.
3.Removable Rotary Axis:If you want to make a 3D job, engrave& marking on bottle, pens, or any other column items, this option will be necessary.We can make it removable on flat table, which make your job much more convenient.
