Zhejiang Huajing Rectifier Co., Ltd. >> Mini Size Switch Mode Power Supply 50w

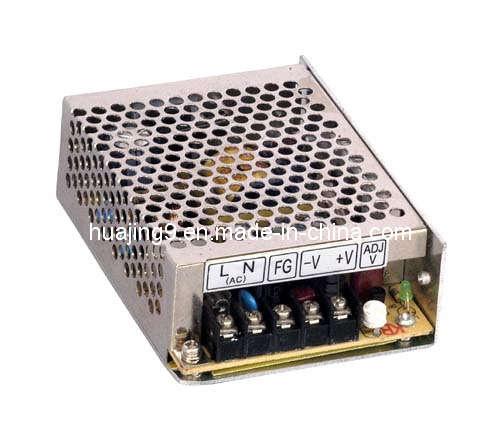

Mini Size Switch Mode Power Supply 50w

Name: Mini Size Switch Mode Power Supply 50w
Brand: China-Manufacturer-Directory.com
SKU: 668680015
Availability: InStock
Rating: 5 (39 reviews)

Supplier:	Zhejiang Huajing Rectifier Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	others

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W

Product Description

Mini size switching mode power supply 50W SMPS
With CE Approval
2 years quality gurantee

Competitived price and high reliability
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model Performance	MS-50-5	MS-50-12	MS-50-15	MS-50-24
DC output voltage	5V	12V	15V	24V
Output Voltage Tolerance (Note 2)	± 2%	± 1%	± 1%	± 1%
Rated output current	10A	4.2A	3.4A	2.1A
Output Current Range	0 -10A	0 -4.2A	0 -3.4A	0 -2.1A
Ripple and noise (Note 3)	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Into the line of stability (Note 4)	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Load stability (Note 5)	± 1%	± 0.5%	± 0.5%	± 0.5%
DC output power	50W	50.4W	50.4W	50.4W
Efficiency	71%	78%	78%	82%
DC voltage adjustable range	± 10, -5%	± 10%	± 10%	± 10%
Input Voltage Range	85 ~ 132VAC/170 ~ 264VAC by switch 47-63Hz
Input Current	1.3A /115V,0.65A /230V
Inrush Current	Current 18A/115V 36A/230V cold start
Leakage	<0.5mA/240VAC
Overload	105% ~ 150% Type: TOLDBACK reset: Automatic restore

Zhejiang Huajing Rectifier Co., Ltd. Established in 1992, is specialized in production of electric power semiconductor components, complete silicon rectifying equipment and instrument&LED panel meter, and possesses reinforced technical force, excellent equipment, advanced workmanship, and complete inspection measure. The product has obtained national industrial production permit and been certified according to ISO9001 and CE.

HUAJING company has main products: Silicond controlled rectifier(SCR), phase control thyristor, fast switching thyristor, bi-directional thyristor, thyristor/diode module, solid state relay. Shunt, switching power supply, heatsinks, LED products, instrument&panel meter, and many low volatge electrical products etc.

Welcome your kind attention and inquiry. We are appreciated your supporting. If you have any questions, please feel free to contact us.
