Product Specifications
| Prod Model: |
JL300A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Small-Scale |
| Condition: |
New |
| Certification: |
CE |
| Type: |
Mini Skid Steer Loader |
Product Description

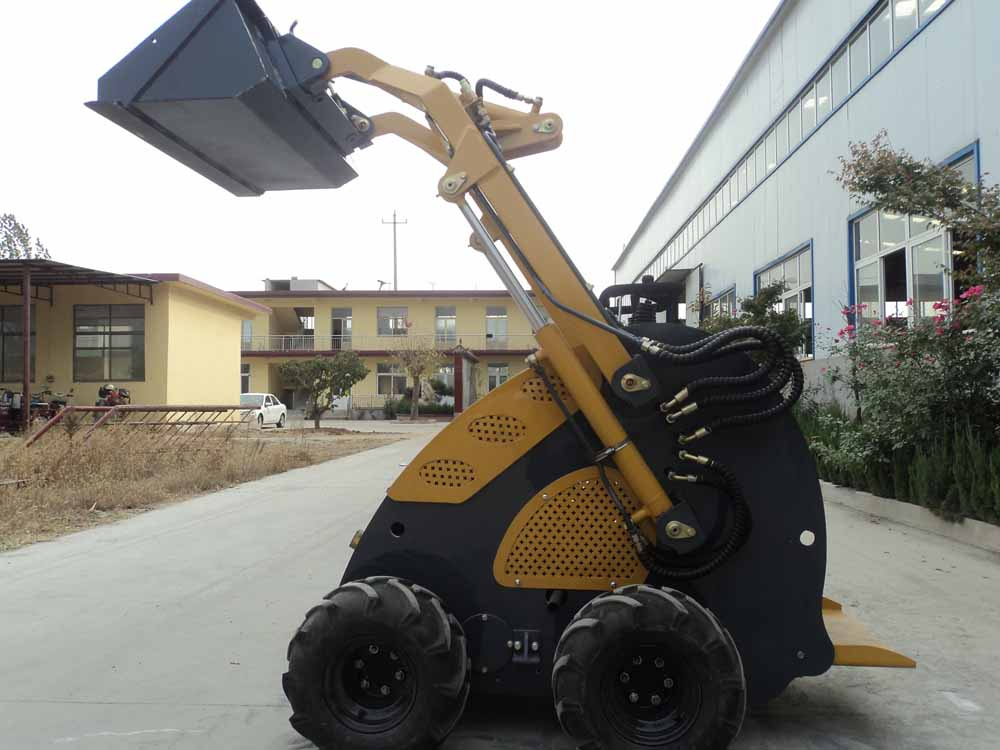

JL300A is mini skid steer loader, small size and best price.
JL300 Main Technical Specifications
Model JL300
Engine Model B&S Rated Power(KW) 15.435(21HP)
Rotating speed(rpm) 3600
Noise (dB) < 95
Hydraulic system System Pressure(Mpa) 17
Working time(s) lift tipping bucket landing
4.27 1.34 3.31
Performance parameters metric
Rated Load 300 kg
Bucket Capacity 0.15 m3
Max heavily lift 375 kg
Max. Travel Speed 0-5.6km. /h
Operating Weight
Solid tyres bodywork 920kg
Ordinary tire body 886 kg
Widened tire body 850 kg
Caterpillar vehicle 1068 kg
Tire model Solid tyres 16*6-8
Ordinary tire 5.00-8
Widened tire KT-302 18*9.5-8 6p/TL
Herringbone engineering births 18*6.5-8
Rim Solid tyres 4.33R-8
Ordinary tire 3.50D
Widened tire 8*6.5
Fuel tank capacity 25 L
Oil tank capacity 27 L
Engine displacement 627 ml
Bucket breakout force 550Kg Tipping load 325kg
WECAN Machinery Company Ltd, subcompany of Shandong Guangming Machinery Co., Ltd., who known as one of top10 forklift and skid steer loader manufacturers in China, has changed its system from a military enterprise to a private enterprise, has more than 25 years of experience in the production.
We are a state appointed manufacturer of lifting and transportation machines and also a large mainstay enterprise of producing agricultural vehicles in China.
The main products are 1.5-3.5 ton battery forklift trucks, 1.5-10 ton diesel powered forklift trucks and 2-4 ton Gasoline forklift trucks; Skid steer loaders model GM650 GM650H GM700 GM750 GM750D GM950 and GM1605; Hand pallet trucks, hand stacker trucks, mobile container crane, electric pallet trucks, electric stackers and all above relevant spare parts.
We have strictly quality control system. The ISO9001 and CE certificates are valid. Our quality is praised by our agents and customers.
With high performance and reasonable price, our products have been exported to more than 60 countries and regions all over the world.
