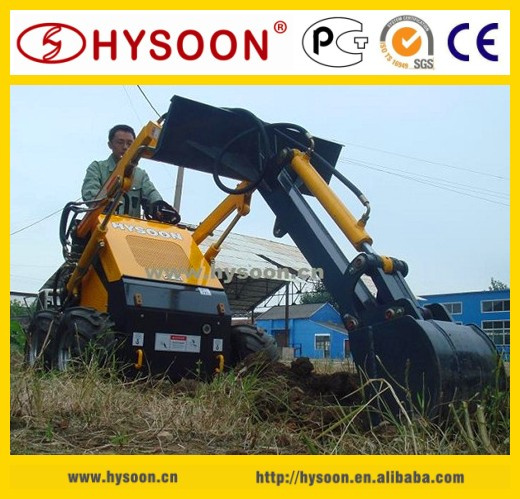

Mini Skid Steer Loader with Digger, Mini Loader, Mini Skid Steer Loader, Small Loader, Wheel Loader
Product Specifications
| Prod Model: |
HY380 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mini Skid Steer Loader With Digger: |
Mini Skid Steer Loader with Digger |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
GOST |
Product Description
1. PRODUCTS INFORMATION
Mini skid steer loader, wheel or crawl
Transmission: Hydraulic transmission
Control system: Hydraulic system
Steering: 360° Steering
Driven: 4 wheels
Overall Dimension: 2206*1160*1233mm(with 1 standard bucket)
1. With imported engine: Briggs&Stratton gasoline engine From USA, 21/23HP
2. China/Italy pump, china mortor, valve
3. Rated load: 300Kg
4. With Engineering tires /Rubber track
5.0.15M^3 bucket capacity
3.
Further informations, please do not hesitate to contact me.
Your satisfaction is our relentless pursuit.
George Guo
Taian HYSOON Machinery Co., Ltd
Mobile: 0086-15265381202
TEL: 0086-538-6189955
Fax: 0086-538-6189955
Website: Www. Hysoon. Cn
|
Item |
Metric |
Inch |
|
Max working height(A) |
2115 mm |
83.3 inch |
|
Max pin height (B) |
1856 mm |
73.1 inch |
|
Max dump height(C) |
1460 mm |
57.5 inch |
|
The highest point discharge distance(D) |
388 mm |
15.3 inch |
|
Bucket swing angle(β) |
55° |
55° |
|
Bucket unloading angle(γ) |
30° |
30° |
|
Opening-closing angle(θ) |
25° |
25° |
|
Angle of departure(α) |
8° |
8° |
|
Total height (H) |
1205 mm |
47.4 inch |
|
The height from the ground(F) |
90 mm |
3.5 inch |
|
Wheelbase (G) |
636 mm |
25.0 inch |
|
No bucket length(J) |
1752 mm |
69.0 inch |
|
Total width (W) |
1033 mm |
40.7 inch |
|
Bucket width (K) |
980 mm |
38.6 inch |
|
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
|
Turning radius (R) |
1307 mm |
51.5 inch |
Main performance parameters:
|
Engine |
Rated power(KW) |
17.15KW(23HP) |
|
Rotating speed(rpm) |
3600 |
|
Noise(Db) |
≤95 |
|
Hydraulic System |
Hydraulic pressure(Mpa) |
17 |
|
Cycle time(s) |
Raise |
Dump |
Lower |
|
4.27 |
1.34 |
3.31 |
|
Performance parameters |
|
Metric |
inch |
|
Load weight (kg) |
200 Kg |
441 Lb |
|
Bucket capacity |
0.15 m3 |
5.33 ft3 |
|
Max lifting power |
375 Kg |
827 Lb |
|
speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|
Operating weight |
890kg
|
1958lb
|
|
Tire type |
Chevron tire |
18*6.5-8 |
Located at the foot of the world famous Mount. Tai, Tai'an Hysoon Machinery Co., Ltd is the first-class professional manufacturer engaged in the research, development and manufacture of miniature engineering machinery in China.
The leading products are Multi-task Mini Skid Steer Loader, Articulated Mini Loader and relevant attachments. It can be mainly used in landscaping, manufacturing, general construction, recycling, gardens, road, building, farm and many other industries.
For example, General Purpose Bucket, 4 in 1 Bucket, Grapple Bucket, Backhoe, Rotary Digger, Excavator, Trencher, Rotary Tiller, Augers, Forks, Dozer Blade, Snow Blade, Snow Blower, Lawn Mower and so on.
All of our products are engineered for safe, user-friendly operation and all models incorporate standard features that offer operators an edge in power, speed, durability, ease-of-use and safety.
We are always orienting our development to the research, manufacture and export of the special loader. Meanwhile, we constantly striving to gain performance advantages and expand our product range so as to win a greater market share.
And we have passed CE approval.
Our products are not only popular in domestic markets, but also have been exported to America, Germany, Australians, Spain, Argentina, Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.
We will supply the best service to you!
