Product Specifications
| Prod Model: |
TDP-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Finished Dosage Form: |
Tablet |
| Type: |
Crude Drug Equipment |
Product Description

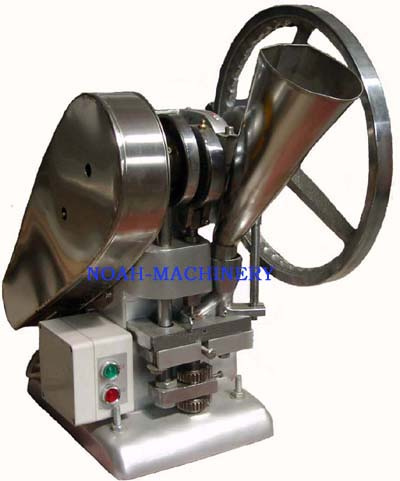

This mini tablet press machine is used for tabletting different kinds of granular raw materials into tablet. It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape. It features a small desktop type press for motive and continual sheeting.
Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Technical specifications:
Max. Pressure: 15kN
Max. Dia. Of tablet: 10mm for round tablet, 12 for tablet in irregular shape
Max. Depth of fill: 11mm
Max. Thickness of tablet: 6mm
Production capacity: 6, 000PCS/h
Power: 220V, 50Hz, 1P/110V, 60Hz, 1P
Overall size: 530 x 340 x 570mm
Net weight: 85kg
Yangzhou Nuoya Machinery Co., Ltd is a scientific and technological enterprise which incorporates development, manufacture and correlation service from pharmaceutical machines, food machines and chemical machines into an organic whole.
The main products: Equipments used for troche & Capsule production line. Including: Tablet press, capsule filling machine, blister packing machine, mixer, pulverizer, granulator, dryer and so etc.
Our company has strong technical force and production experience, the first through the IS09001 international quality system certification, and has a number of patents and inventions, to fill the domestic blank, identified by the national authoritative organization; Products are all in line with the GMP requirements, Most products have successfully passed the European CE certification and SGS certification.
NOAH' S human integrity & dedication, through hard work and struggle for many years, so our products has become a symbol of high quality, with a large number of domestic and foreign customers, selling more than 60 countries and regions.
We appreciate every trust and support, and would like to cooperate with you to create good future.
