Mini itx PC size only 205*140*40mm, supply HD screen, mini fanless computer design make this computer totally silence and low consumption. Zero maintenance, easy HOST control, save eneygy and save cost.
Mini itx PC is fanless, support dual working mode, you can use it alone or use it as thin client. Terminal is tutally new style thin client terminal.
Mini Itx PC X86 use Intel Atom N270 1.6 G CPU, 1G DDR2 memory and 8G SSD (Up to 320G Harddisk is available), pure metal mini computer case make it strong and slap-up.
As a normal desktop computer, this mini itx PC has powerfull Intel Atom N270 1.6 G CPU, 1G DDR2 memory and 8G SSD (Up to 320G Harddisk is available), pre-installed Windows XP, so you can use it to finish any of your office work, also entertainment function; As a Thin client PC Station Terminal, it has thin client software to install in host and terminal, so it can connect to HOST and share all the resources of the HOST. Compare to normal PC Station, this X86 terminal is much powerfull, support almost all kind functions that you want for a normal computer.
|
General |
|
CPU |
Intel N270 Core 1.6 G main Frequency, 533MHz External Frequency, 512 MHz Cache
Consumption 4W, fanless, whole computer consumption less than 20W |
|
System |
Pre-installed XP |
|
Memory |
DDR2 SO-DIMM 1GB, Max 2GB optional |
|
Lan |
1 * RJ45 RTL8111DL 10~100~1000M self-adaption lan card |
|
Graphics card |
Intel GMA950, 128M video memory standard, max 256M |
|
Harddisk |
SATA SSD 8GB, notebook HDD 160G, 320G,500G optional |
|
Performance |
|
CPU port |
BGA Packaging, Onboard CPU |
|
Chipset |
Intel® 945GSE Express Chipset
MCH: 945GSE + ICH7 mBGA
FWH |
|
BIOS |
AMI BIOS, ACPI supported |
|
Memory |
1* SO-DDR2 SDRAM slot, max 2G DDR SDRAM
PC533/667/800 DDR SDRAM |
|
Lan |
RTL 8111DL 10/100/1000 BaseT LAN, support diskless RPL or PXE guiding |
|
Audio Card |
ALC662 chip, 6 channel sound card |
|
I/O |
FINTEK71862FG chip, 1 * parallel LPT, 2* RS232, COM port 9th pin support 12V and 5V power supply, GPIO; 2 SATA (Serial II ATA) support 3Gb/s; 150M wifi optional

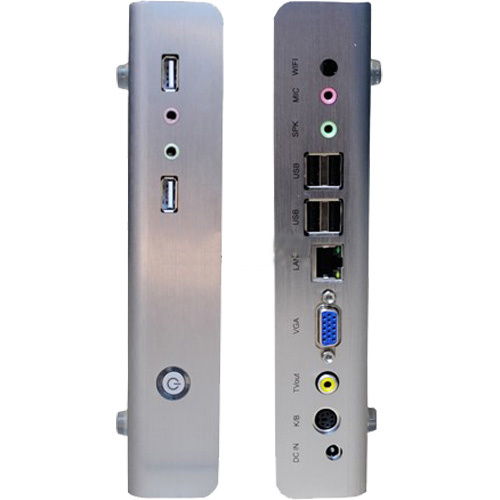

6*USB (4 front 2 rear port), VGA CRT, 1*RJ-45, 4 *USB ports
1*DC in12V, 1*AV, AUDIO-OUT, AUDIO-MIC |
|
|
|
Power supply |
AT/DC 12V |
|
Dimention |
Product dimention: 205*140*40mm
Package dimention: 240*200*50mm (Nutrual white box) |
|
Weight |
X86 NW: 950 g
Shipping GW: 1.5KG |
