Features
(1)HD-SDI/SDI/ASI signal auto recognition, need not select by hand
(2)Compliant with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI), SMPTE344M
(3)Compliant with the standard of DVB-ASI(EN50083-9)
(4)Auto adaption to the speed of
HD-SDI/SDI 143M, 177M, 270M, 360M, 540M, 1483.5M, 1485Mbps, or DVB-ASI
(5)With automatic cable equalization function, compensation for
Cable transmission loss
(6)Convenient instructions of LED status, data rate, optical link, power supply etc.
(7)PCB boards made with environment friendly Pb-free
(8)PCB boards made with multilayer design, to ensure stable and reliable signal transmission
(9)All components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
(10)Enclosure box material is made of aluminum, elegant appearance, light weight
(11)External power supply
(12)Reverse data
Introduction
Doteck HD series digital video fiber optic transmission system can transmit one HD-SDI(1483.5M/1485Mbps)high definition digital video, or one SD-SDI(143M/177M/270M/360M/540Mbps)standard definition digital video or one DVB-ASI stream and one reverse control data RS232 through one single mode fiber or multimode fiber with the standards of SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI).
Due to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

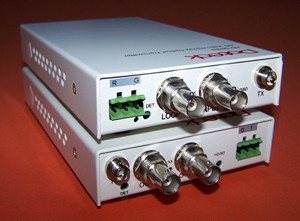

Doteck HD series transmitter provides one HD-SDI input, and one loop-through for local monitoring. The receiver outputs 2-way parallel HD-SDI digital video.
Doteck HD series transmitter equipped with auto-cable equalization circuit, and cable driver circuit available at receiver.
Doteck HD series, both at the transmitter and receiver, signal jitter elimination circuit available, to ensure high quality signal transmission over long distance fiber cable.
Doteck HD series uses 3.3V power supply system, low power consumption.
Technical Specification
HD-SDI Input
Signal Standard
SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310, SMPTE305(SDTI), DVB-ASI(EN50083-9)
Number of Input 1 plus 1 loop-through
Resolution 10 Bit
Signal Level more than 380mVp-p
Auto-Cable Equalization
More than 250m(270Mbps)( BELDEN8281 Cable)
More than 100m(1485Mbps)(BELDEN8281 cable)
Input Return Loss more than 15dB(1485Mbps)
Impedance 75Ω
Connector BNC
RS232 Input Channel 1
Connector Terminal Block
Baud Rate Up to 115200bps
HD-SDI Output Channel Capacity 2
Signal Level 800mVp-p +/- 10%
Rise/Fall time less than 0.8ns
HD-SDI Jitter less than 0.2UI(134ps) at 100kHz
Less than 1.0UI(673ps) at 10Hz
SDI Jitter less than 0.2UI(740ps) at 10Hz
Less than 0.2UI(740ps) at 1kHz
Impedance 75Ω
Connector BNC
RS232 Output Channel 1
Connector Terminal Block
Baud Rate Up to 115200bps
Physical Dimension(H x W x D) 26.7mm x 98.4mm x 165mm
Power Supply 130 - 260VAC, 50-60Hz
Power Consumption less than 10W
Temperature 0 to +70 Degree
Humidity 0 to 95% RH Non-condensing
LED Status Indicator Power, Optical Link, Video Activity
Optical Fiber Type Single mode
Number of fiber 1
Wavelength 1310nm/1550nm
Distance 0-30km
Connector FC/PC
