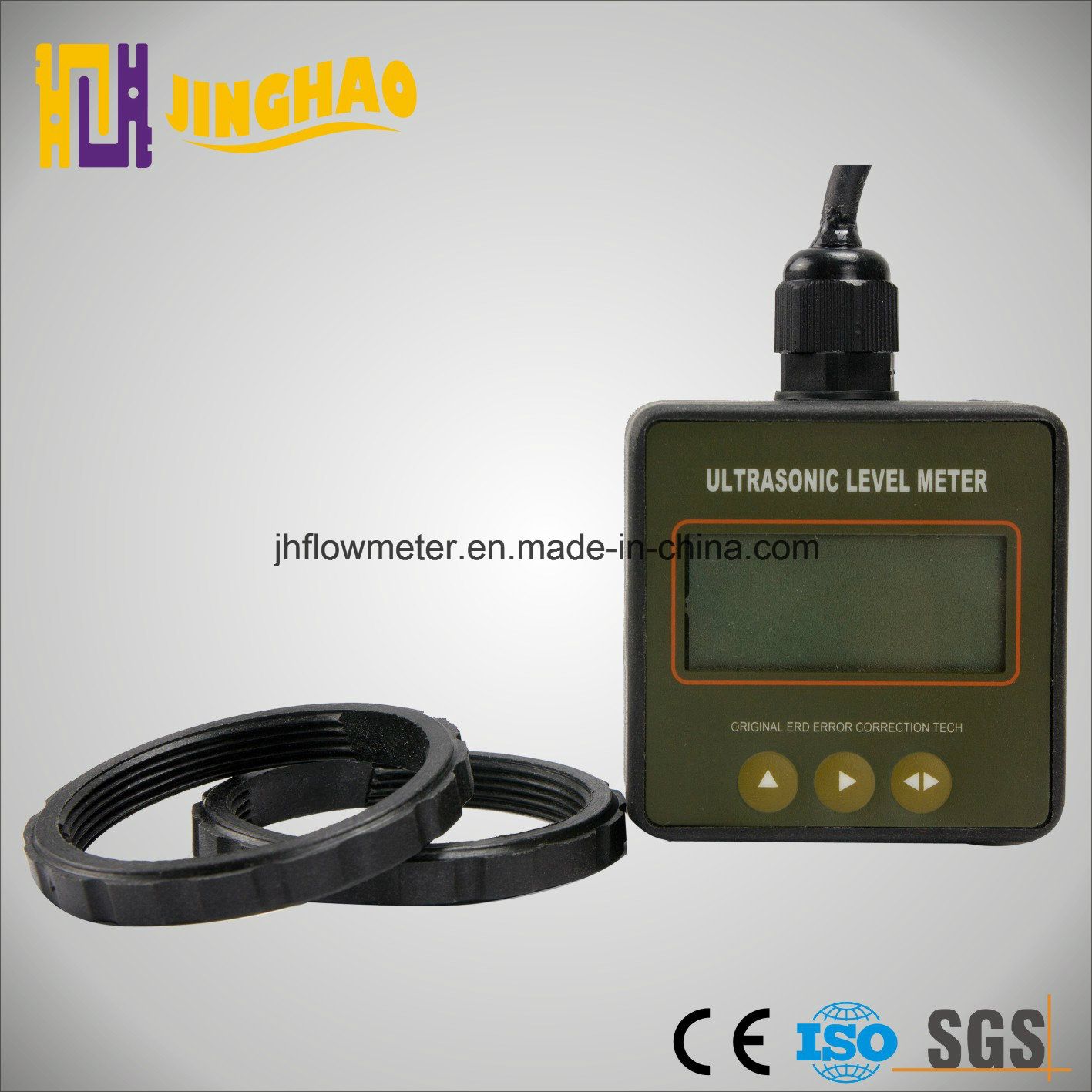

Mini Ultrasonic Liquid Level Meter with LCD Display (JH-ULM-CSA)

Name: Mini Ultrasonic Liquid Level Meter with LCD Display (JH-ULM-CSA)
Brand: China-Manufacturer-Directory.com
SKU: 775041155
Availability: InStock
Rating: 4.6 (139 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 50-200/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,DAP,CIP

Product Specifications

Prod Model:	JH-ULM-CSA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0-10m
Stability:	Less 0.1% Fs/Year
Supply Voltage:	24VDC
Output Signal:	Two-Wired 4~20mA
Temperature:	0-80c
Material Of Sensor:	Ss316
Range:	>0-30m
Kind:	Ultrasonic Wave
Structure:	All in One
Accuracy:	0.5%
Material:	ABS

Product Description

Mini Ultrasonic Level Meter

Ultrasonic level meter is an intelligent level measurement instrument. It adopts advanced single-chip microcomputer technology. Its functions are complete data transmission, man-machine exchange function, temperature compesation and strong anti-interference. Alarming and signal output are set arbitrarily. No-contact measurement can meet various conditions and it has more advantages than traditional measurement method.

Applications:
-Hydraulic fields, environment protecting fields
-Water tank level measurement and control.
-Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

Features:
-Easy to install
-Small installation space(50-60mm for hole)
-High accuracy
-Different measurement range
-Small blind area (if the device customized for specific environment the minimum dead zone can be less than 30 mm)
-Various outputs:RS232/RS485
-Resistant to moisture,dust,high temperature,etchant gas and other bad environment(can be used indoor and outdoor)
-Requires less maintenance
-No pollution

Technical parameters:

Measurement range	5m,7m(Under clean environment, with rigid and smooth objective surfacecorresponding wave beam projected area)
Probe blind area	≤300~350mm (varies from different measure range and sensor,at 25 ºC)
Accuracy	Better than 0.5% F.S
output signal	4~20mA two wire
Display	LCD
Working temperature	0-50C
power supply	24VDC
protection Class	IP65
Connection	screwM49×1.5,or sifter clamping
Application environment	constant pressure, NOTexplosion-proof, Non erosive environment
