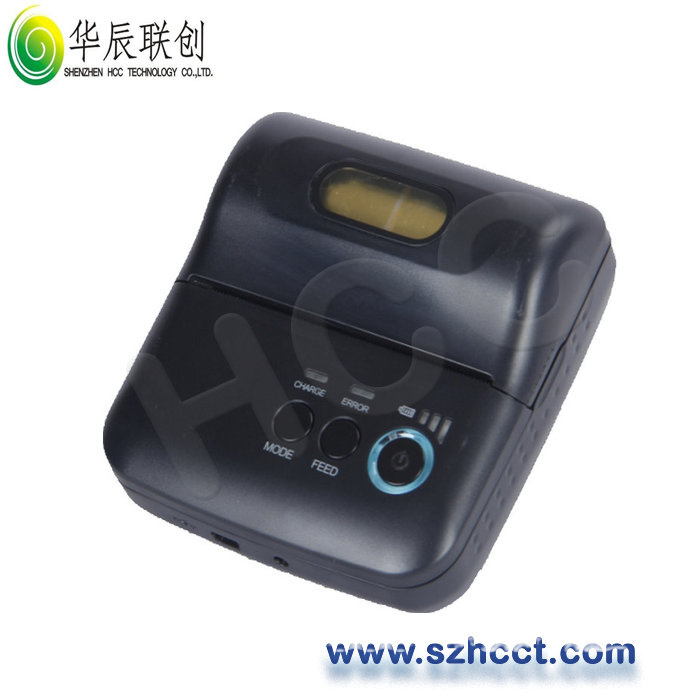

Mini-USB WiFi Direct Thermal Line Portable Printer
Product Specifications
| Prod Model: |
HCC-T9WF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Paper Width: |
80±0.5 Mm |
| Paper Cutting: |
Manual |
| Printer Size: |
103*99*46mm |
| Printing Speed: |
60 Mm/S |
| Paper Type: |
Thermal Paper |
| Color: |
Black, White |
| Weight: |
250 G ( Not Include Roll Paper ) |
| Usage: |
Receipt Printer |
| Interface Type: |
USB |
| Style: |
Black and White |
| Type: |
Thermal |
| Max. Paper Size: |
78mm |
Product Description
HCC-T9WF Portable Printer
Features:
Smart design, fashion appearance and excellent function
Quick and efficient printing
Easy drop-in clamshell paper loading with big roll paper
Support USB and WIFI interface
Support vehicle charge and continue printing when battery in charging
Over 100 hours stand by and continue printing 120 meters with once charge
| Printing | Printing Method | Direct thermal line |
| Printing Character | Chinese: GB18030 24×24 dot
English: ASCII 9×24 dot, 12×24 dot |
| User-defined Character | 6×8 dot |
| Printing Speed | 60 mm/s |
| Graphics | Different dot graphics and printing bitmap |
| Function | Low Paper Alarm | support |
| Black Mark Location | support |
| Automatic Dormancy | support |
| Alarm | Buzzer | support |
| Interface | Wire | Mini-USB |
| Wireless | WIFI |
| Roll Paper | Paper Type | Thermal paper |
| Paper Width | 80±0.5 mm |
| Paper Diameter | 40 mm ( external diameter )/13 mm ( inner diameter ) |
| Paper Loading | Easy Loading |
| Paper Cutting | Manual |
| Physical | Operating Temp. / Humidity | 0~50ºC/10~80%( relative humidity ) |
| Storage Temp. / Humidity | -20~60ºC/10~90%( relative humidity ) |
| Printer Size | 103X99X46mm |
| Color | Black, White |
| Weight | 250 g ( not include roll paper ) |
| Reliability | TPH | 50 KM |
WIFI
Parameter | Wireless Standard | 802.11b/g/n |
| Frequency Range | 2.412GHz-2.484GHz |
| Netword Type | Station mode, AP mode |
| Security Mechanism | WEP/WAP-PSK/WAP2-PSK/WAPI |
| Encryption Methods | WEP64/WEP 128/ TKIP/ AES |
| Transmission Distance | 100M:Open field
30M:Easily through one concrete wall
20M: Easily through two concrete wall |
