SJIA-10N Vaccum freeze dryer is a cost effective and high performance benchtop freeze dryers/Lyophilizer.
3 Liters in 24hours ice capacity.
Internal condenser coil-304 or 316 stainless steel.
-50C or -80C condenser lowest temperature.
CFC-free refrigeration.(optional for customer's request refrigeration:R507,R404A etc.)
Heating element to defrost available for optional.
Transparent Acrylic Drum drying chamber for user to observe the drying process.
SJIA-10N bench type freeze dryer parameters:
Condenser temperature <-50 °C; or -80 °C
condenser capacity in 24 hours: 3L;
No. of trays: 4 (top stopper type is 3);
tray size: diameter 200mm;
vacuup pump :2L/s;
Freeze dryer vacuum reach to <10Pa;
power : 220v-240V or 110-115V; 50/60hz
Rated power: 800w( -50 °C) or 1200w (-80 °C);
7'' LCD touch control ,LCD display
how to choose the temperature of the freeze dryer?
For water based samples, the -50C condenser is the perfect choice with effective cost.
For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.
For labs that need quick turn-around, Heating element to defrost available.
Main Technical Parameters:
Parameters Model | SJIA-10N (Desktop) | SJIA-12N(Vertical) | SJIA-18N | SJIA-18SN |
No-load temperature | <-50°C,<-80°C optional | <-50°C,<-80°C optional | <-50°C,<-80°C optional | <-60°C,<-80°C optional |
No-load freeze area | 0.09-0.12m2 | 0.09-0.18m2 | 0.09-0.27m2 | 0.09-0.27m2 |
Plate load materials | 0.7-1.2L | 0.7-2L | 2-3.5L | 2-3.5L |
Ability to capture water | 3Kg/24h | 4Kg/24h | 6Kg/24h | 6Kg/24h |
Vaccum | <10Pa | <10Pa | <10Pa | <10Pa |
Dimension | 500 x 395 x 370+420(drum) mm | 500 × 400× (650 +420 drum) mm | 830 x 532 x 900+420(drum) | 830 x 532 x 900+420(drum) |
Material Tray Specifications | Φ200mm four-layered(common) Φ200mm three-layered(with cover) | Φ200mm four-layered 70mm(common) Φ200mm six-layered 50mm(common) Φ200mm three-layered(with cover) | Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) Optional: Φ200mm three-layered(with coverd) | Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) optional Φ200mm three-layered (with cover) |
Consuming wattage | 1000VA | 1000VA | 1300VA | 1300VA |
Voltage | 220V 50HZ /110V 60Hz | 220V 50HZ /110V 60Hz | 220V 50HZ /110V 60Hz |

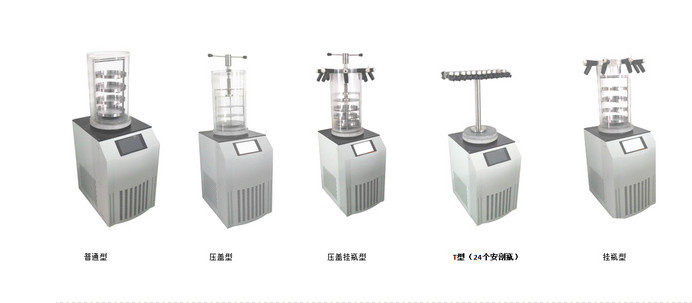

The SJIA-10N bench top freeze dryer can build with 5 common application different accessories.
The versatile freeze dryer can meet customer's various application.
| basic type Transparent Acrylic Drum chamber with rack and 4xΦ200mm trays. The trays liquid load 1.2L; Drying area: 0.12 square meter |

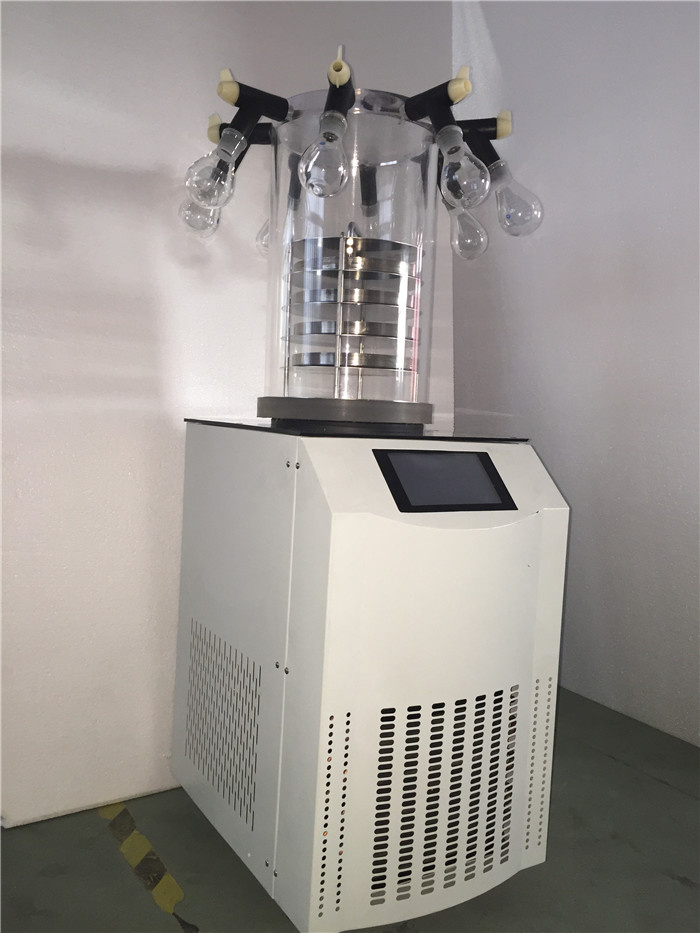

| Acrylic Drum with Multi-manifolds: 8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory. The trays liquid load 1.2L; Drying area: 0.12 square meter |
| Top-stoper down type: Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter; |
| 8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf: The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter; |

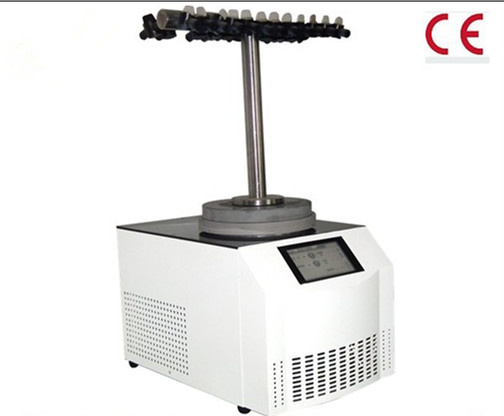

| (24 or more ports) 24-Port Column Manifold T type is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory. |
