Product Specifications
| Prod Model: |
DL-SC05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
144VAC~240VAC 50-60 Hz |
| Output Voltage: |
12 VAC |
| Operating Voltage: |
12V |
| Input Power (Normal Condition): |
5W |
| Input Power (Standby): |
0.8W |
| Output Power Of Motor: |
3.7W |
| Drive: |
Motor |
| Revolution: |
4000 Rpm |
| Turnover Diameter: |
5.2mm |
| Vibration Mode: |
Circle |
| Type: |
Laboratory Parts |
Product Description
Classification
The instrument has two models:
- DL-SC05 Designed with both the inching mode and continuous operation mode
Purpose
For mixing of liquid in a single test tube
Scope of application
- Laboratory
- Schools
- Pharmaceutical companies
Power adapter
Input voltage: 144VAC~240VAC 50-60 Hz
Output voltage 12 VAC

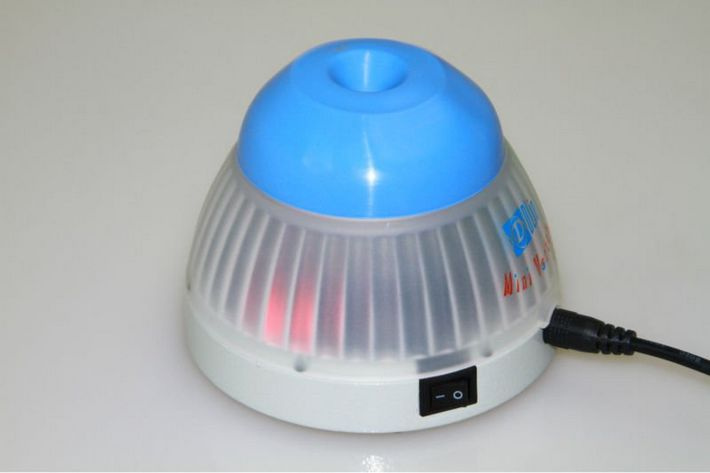

Mini vortex mixer
Operating voltage 12V
Input power (normal condition) 5W
Input power (Standby) 0.8W
Output power of motor 3.7W
Drive Motor
Revolution 4000 rpm
Turnover diameter 5.2mm
Vibration mode Circle
Relative humidity 80%
Protection grade IP40
Operating altitude Max. 2000m
Overall dimension (L× W× H) 100 mm× 100 mm× 80 mm
Net weight 1.0 Kg
Max. Load 0.1 Kg
