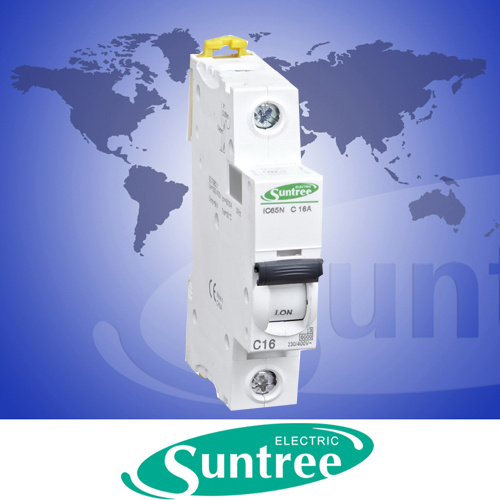

Miniature Circuit Breaker IC65 MCB IC65n (IC65N 1P)
Product Specifications
| Prod Model: |
SIC65N-C16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
Product Description
Standard IEC60947-2/GB14048.2
Product certifications CCC CE
Pole 2, 3
Tripping curve MA (12ln± 20%)
Breaking capacity 15kA
Current rating 1.6~40A
Degree of protection IP40(front face) IP20(terminal)
Operating temperature -35° C~+70° C
Storage temperature -40° C~+85° C
Limitation class 3
Fast Closure
Double clip for dismounting with comb busbar in place
Fault tripping indication by a red mechanical indicator in circuit breaker front face
The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety
Remote indication, open/closed/tripped, by optional auxiliary contacts
Top or bottom electrical feeding
|
NO. of Pole |
1P, 2P, 3P, 4P |
|
Rated voltage |
230V/415V |
|
Mechanical life |
4000 times |
|
Electrical life |
10000 times |
|
Rated current |
1, 2, 3, 6, 10, 16, 20, 25, 32, 40 |
|
Protective grade |
IP20 |
|
Breaking capacity |
4.5, 6, 10kA |
Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.
We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
