Miniature PCB Relay with UL Approval (JQX-14FC-1Z)

Name: Miniature PCB Relay with UL Approval (JQX-14FC-1Z)
Brand: china-manufacturer-directory.com
SKU: 694632955
Availability: InStock
Rating: 4.8 (84 reviews)

Supplier:	Xinling Electrical Co., Ltd. China
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HHC69A-1Z(JQX-14FC-1Z)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	30L13W25.5h
Contact Form:	1A. 1b. 1c
Coil Power:	DC: 0.53W; AC: 1.0va
Coil Voltage:	DC3V-110V; AC6V-240V
Rated Load:	10A&16A /240VAC 28VDC

Product Description

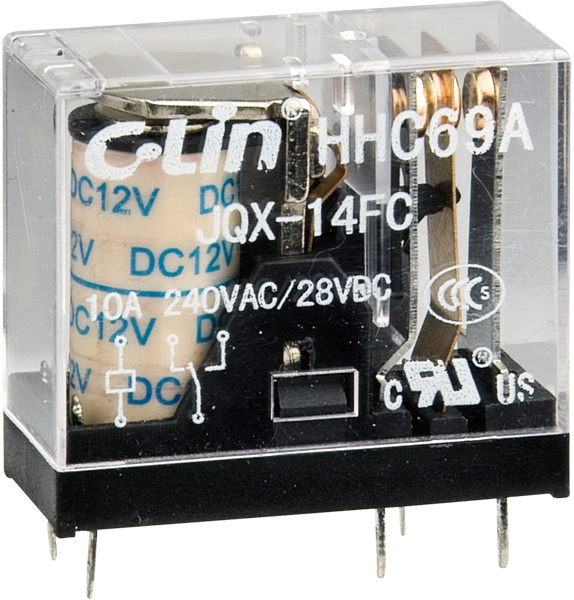

We manufacture all kinds of relays, PCB Relay / Miniature PCB Relay / General Relay /Omron Relay (JQX-14FC-1Z)

PCB Relay(JQX-14FC-1Z) feature:

Contact Form: 1A. 1B. 1C
Rated load: 10A, 16A/240VAC 28VDC
Coil power: DC: 0.53W; AC: 1.0VA
Dimension: 30L*13W*25.5H

Miniature PCB Relay is an electrical switch that opens and closes under the control of another electrical circuit. C. Lin produced PCB Relays feature ultra-minimized size, low power and high quality and so on. And they are widely used in remote control, automatic control and communication systems etc.

PCB Relays allow one circuit to switch a second circuit which can be completely separate from the first. For example a low voltage battery circuit can use a relay to switch a 230V AC mains circuit. There is no electrical connection inside the relay between the two circuits; The link is magnetic and mechanical.

Part No		HHC69A-1Z(JQX-14FC) Miniature Pcb Relay/Pcb Relay
Dimension		291325.3
Contact Feature	Form	1A, 1B, 1C
	Rated load	10A/240VAC 28VDC
		16A/240VAC 28VDC
	Contact resistance	less than or equal to 100mΩ
	Material	silver alloy
	Electrical life	equal to or greater than 1*105
	Mechanical life	equal to or greater than 1*107
operate voltage(23 centigrade)		DC: less than or equal to 75%*rated voltage
		AC: less than or equal to 80%*rated voltage
release voltage(23centigrade)		DC: equal to or greater than 10%*rated voltage
		AC: equal to or greater than 30%*Rated voltage
Maximum voltage(23 centigrade)		110%*rated voltage
Normal coil voltage	DC	3-110V
	AC	6-220V
Normal coil power	DC	0.53W
	AC	1.0VA
Pick-up time		less than or equal to 20ms
Release time		less than or equal to 10ms
Dielectrical strength	Between Same-pole contacts	1500VAC/1min(leakage current 1mA)
	Between contacts and coil	1500VAC/1min(leakage current 1mA)
Insulation resistance		equal to or greater than 100mΩ (500VDC)
Ambient temperature		minus 55 centigrade to 70 centigrade
Ambient humidity		35%-80%RH
Atmospheric pressure		86-106KPa
Shock resistance		10G(sinusoidal half-wave pulse: 11ms)
Vibration resistance		10-55Hz(double amplitude: 1.5mm)
Installation		PCB, Socket
